FEATURES

• No-drill solution that attaches to the vehicle without the need to order a separate top plate. Leg kit is provided with the console box.

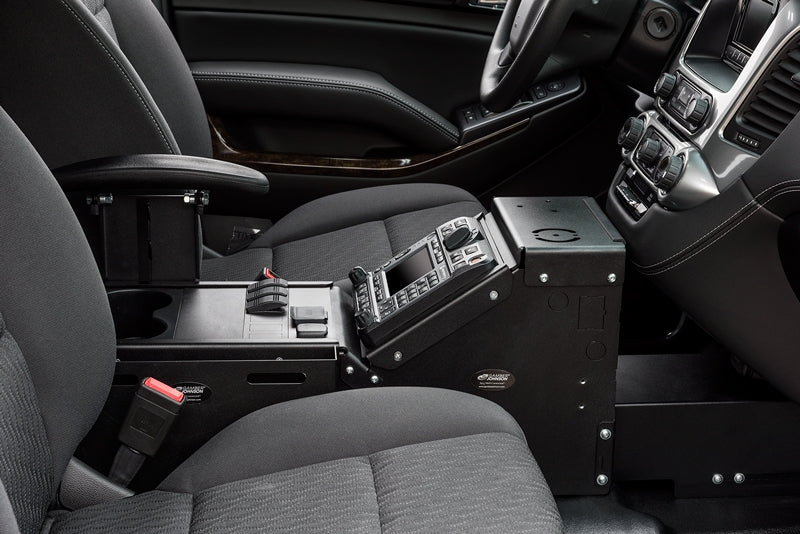

• Two 12 volt plug inserts located on passenger side
• USB/MP3/SD card from factory console can be relocated on passenger side using knock-outs or USB/MP3/SD card/12 Volt from factory console can be relocated using faceplate (item no. 15250)
• Front plate of console (underneath the dash) allows a fuse block or Lind shut down timer using pre-configured mounted holes

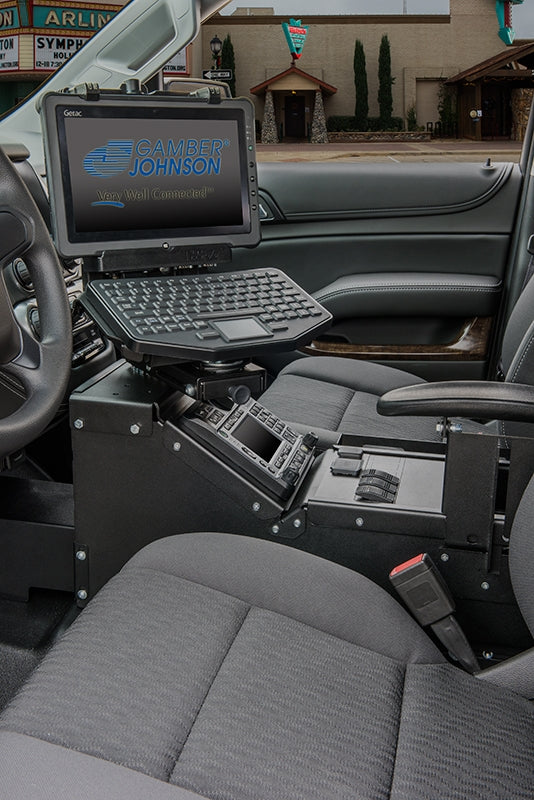

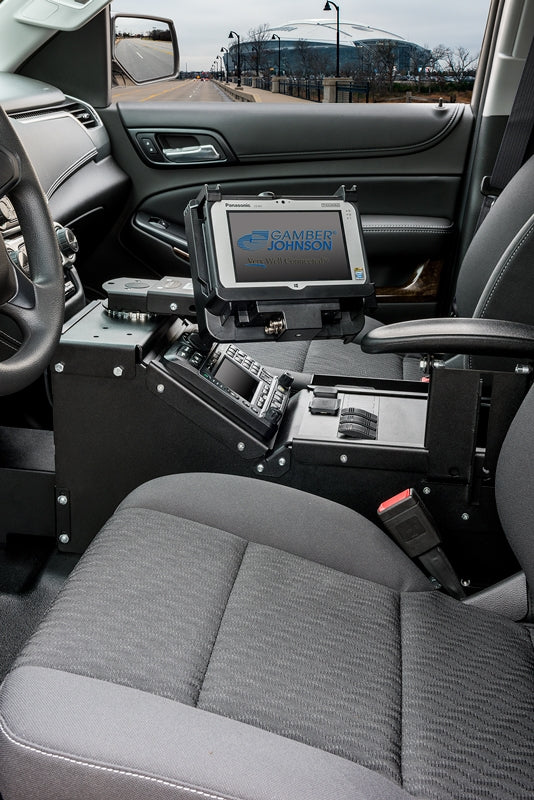

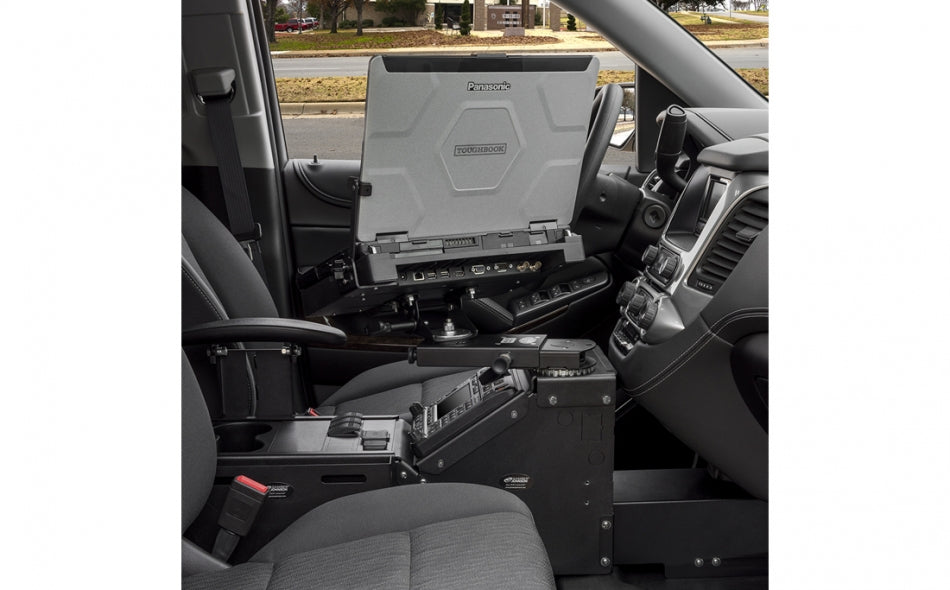

• Computer can be center mounted in two locations:
  1. Off-set towards the passenger on the “smiley face pattern"
  2. On the 3-bolt pattern closer to the driver for easy articulation access
• Heavy gauge steel, fully welded construction for long-term durability
• Black powder coat finish for maximum corrosion resistance
• Box will ship fully assembled
• 3 faceplates and 3 filler panels are included
• Console box works with manual 4x4 shift lever
• Must order as is. There are no substitutions for accessories. Accessories may need to be assembled.

WARRANTY: LIMITED LIFETIME

• A limited lifetime warranty is against manufacturer defects, not normal wear and tear.

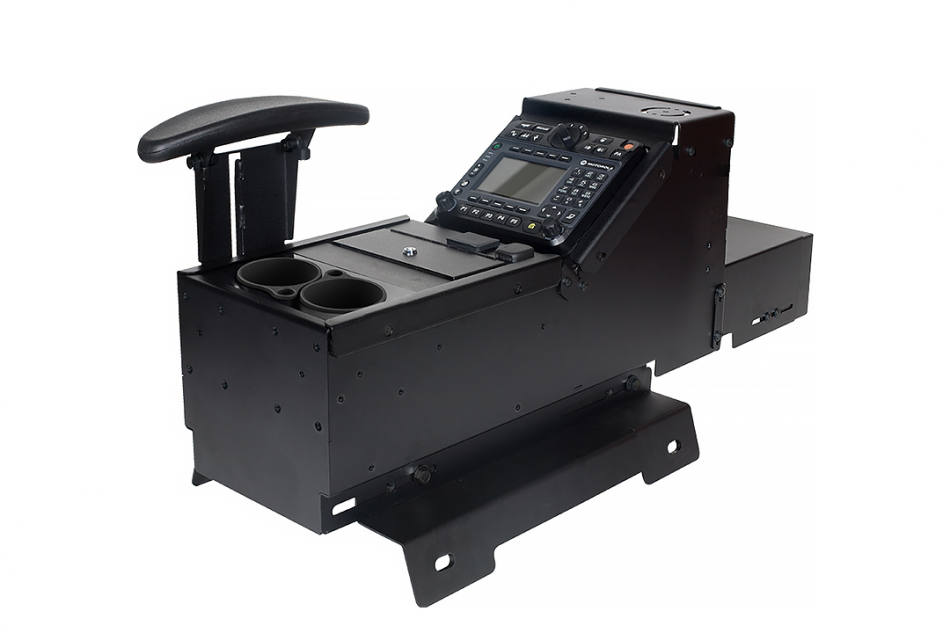

INCLUDED WITH KIT

• Console box (item no. 7160-0548)
• Leg kit (item no. 7160-0509)
• Armrest (item no. 7110-1013)
• Wiring chase (item no.7110-1024)
• Cup holder (item no. 7160-0846)

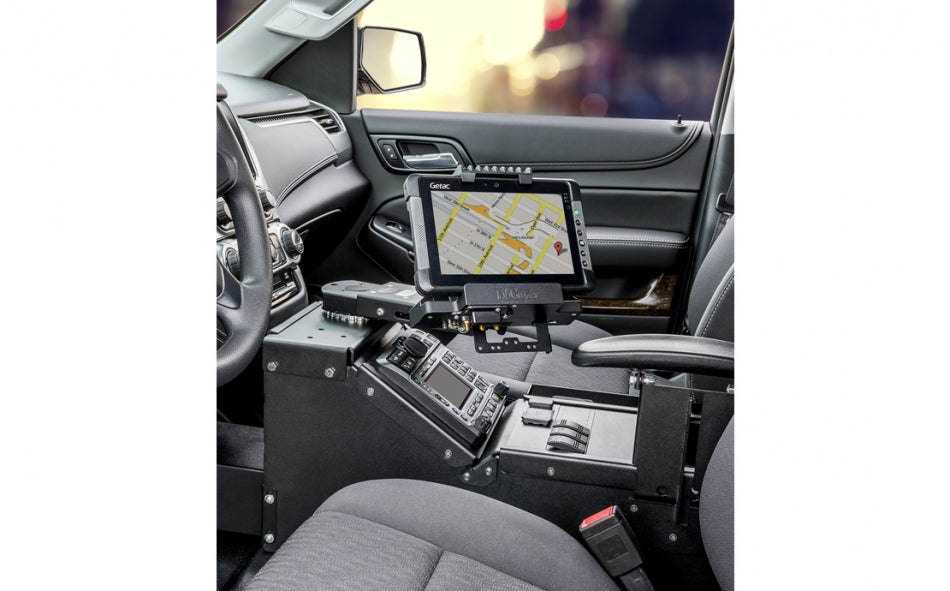

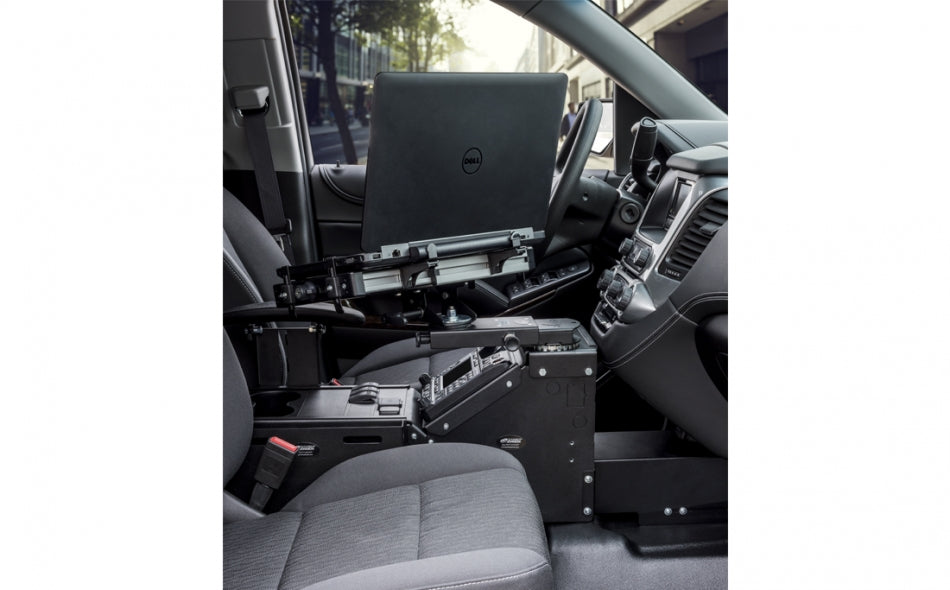

Note: Only the accessories listed above are included in the kit. Items such as control heads, radios, docking stations, motion attachments, computers, toggle switch plates, and locking pocket shown in photos are not included.

PLACEMENT

• On top of transmission hump

DRILLING REQUIRED

• No - attaches to transmission hump

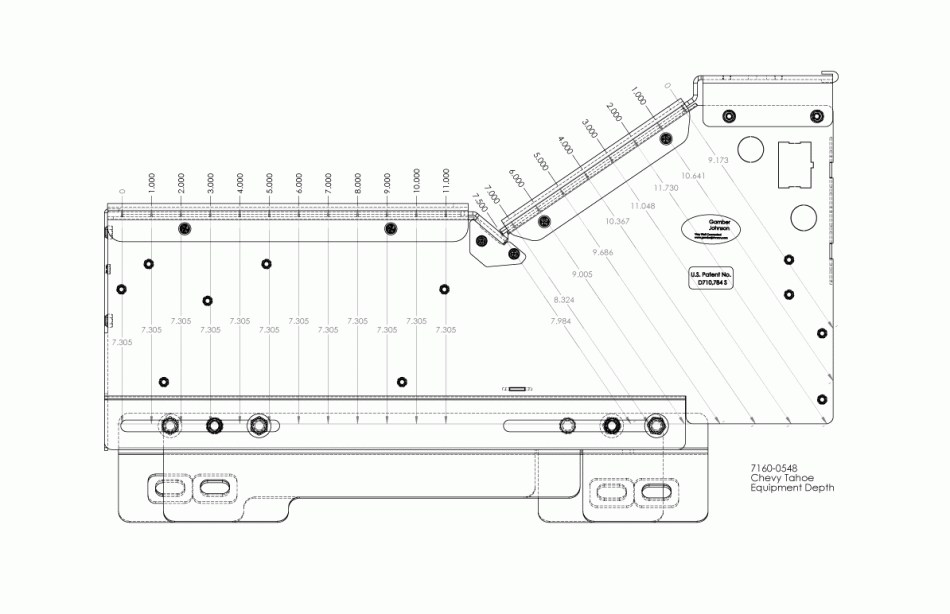

MOUNTING SPACE

• Vertical angled section: 7.5” (19.1 cm)
• Horizontal section: 8“ (20.3 cm) with cup holder

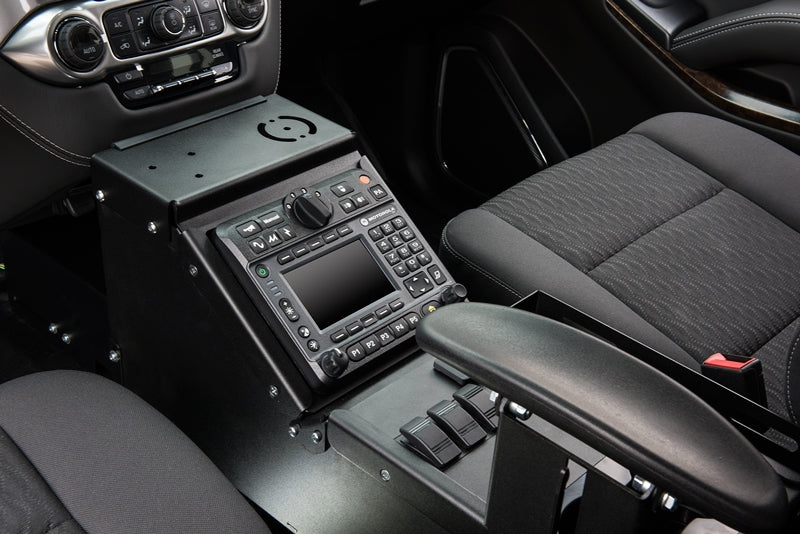

A low profile vehicle specific console box crafted for exceptional performance. This console box is made of heavy steel, fully welded construction, and black powdercoat for long term durability and maximum corrosion resistance. The leg kits attach to the mounting points on the side of the transmission hump and do not require drilling.

COMPATIBLE VEHICLES

2014-2018 Chevrolet Silverado 1500
2015-2019 Chevrolet Silverado 2500/3500
2015-2020 Chevrolet Suburban/Tahoe
2014-2018 GMC Sierra 1500
2015-2019 GMC Sierra 2500/3500
2015-2020 GMC Yukon/Yukon XL
