Gamber Johnson

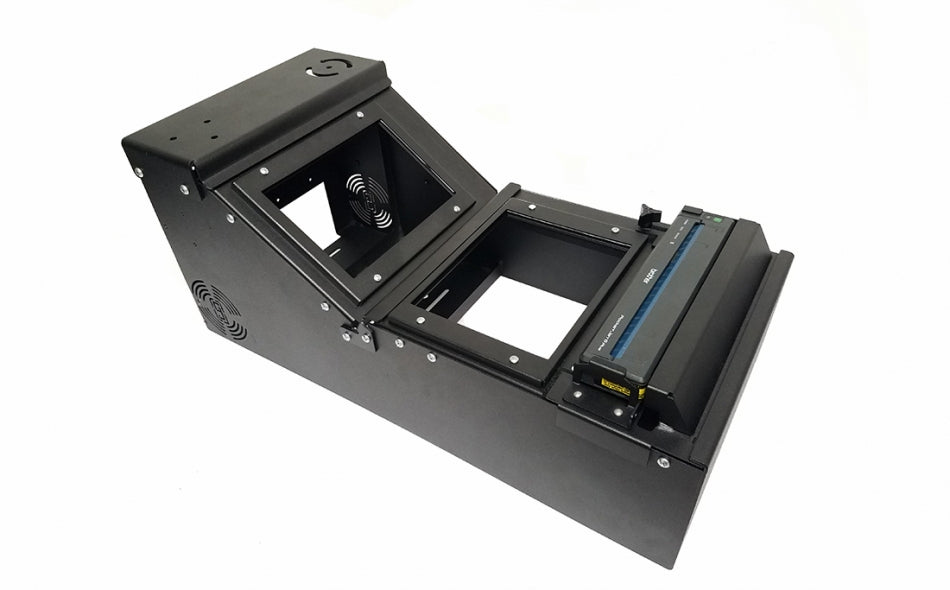

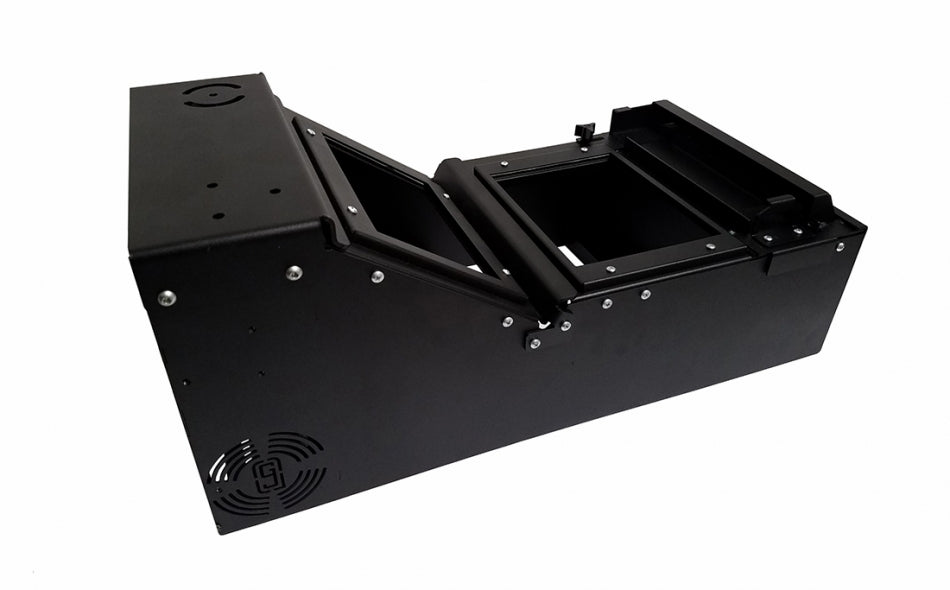

Low Profile Universal Console with Volt Plug Knockouts & Battery Voltage Display

Low Profile Universal Console with Volt Plug Knockouts & Battery Voltage Display

7160-0958

$827.00 USD
$827.00 USD
Sale Sold out
Shipping calculated at checkout.

Check Estimated Lead Time!

FEATURES

  • Low profile, universal console with sloped front mounting area
  • Designed to work with Top Plate / Tunnel Plate and Leg Kits
  • Two 12 Volt plug knockouts, located on the passenger side wall of console box and one knockout for switches , dual USB power ports, battery voltage display, data / mic jack or USB / AUX input module extension
  • Threaded inserts for mounting mic clip (item no. 7120-0723) or  Magnetic Mic™  (item no. 17040) on both sides
  • Side vented openings for air flow or mounting a speaker inside the console box
  • Threaded inserts on both sides of console box for side armrest mounting (item no. 7110-1012 - passenger side armrest) and (item no. 7110-1013 - driver side armrest)
  • Threaded inserts on passenger sides of console box for the passenger side document compartment (item no. 7160-0464) and driver side armrest (item no. 7110-1013)
  • Threaded inserts on back of console box for mounting external cup holder (item no. 7160-0847) and MCS armrest (item no. 7160-0429) or printer armrest (item no. 7160-0430)
  • Front plate of console (underneath dash area) has placement for a power distribution block or Lind shut‐down timer using pre‐configured mounted holes
  • Box shipped assembled, except accessories
  • Computer can be center mounted in two locations:
    • Off‐set towards the passenger on the “smiley face pattern”
    • On the 3‐bolt pattern closer to the driver for easy articulation access
  • Fully welded construction for long term product life span
  • 3 faceplates and 3 filler panels are included
  • Limited Lifetime Warranty

HORIZONTAL, LOW PROFILE SECTION

  • Has a consistent mounting space height of 6.0"
  • Designed to house devices and accessories measuring less than 6 inches in depth
  • Has additional side mounting area of 2" that will accommodate the 2-inch Faceplate for Switches or Power Ports (item no. 7160-0924) or a smaller device

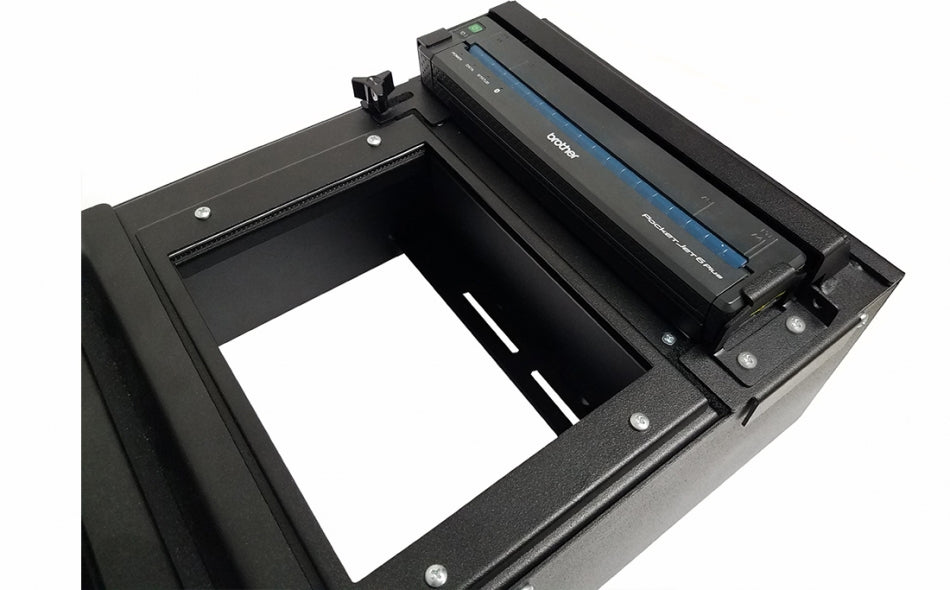

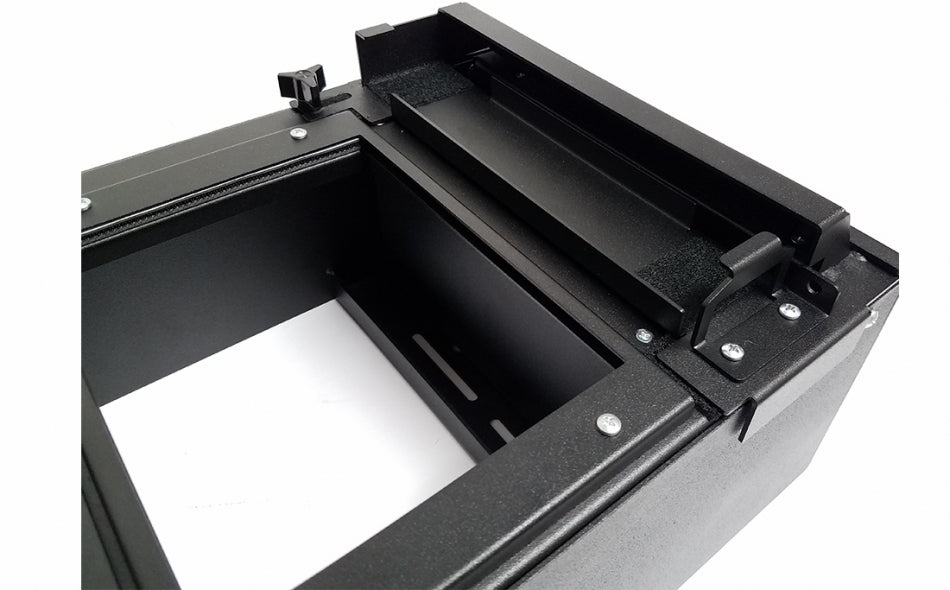

  • Mounting for the Brother Pocket Jet series printer and roll of paper in the back of the console box
  • Removable printer cover for easy reloading of printer paper

VERTICAL, ANGLED SECTIONS

  • Accommodates 1 to 2 full sized devices or faceplates (5” of mounting space)
  • Two 12 Volt plug Knockouts, located on top passenger side and 2 knock-outs for switches , dual USB power ports, battery Voltage display, data / mic jack or USB / AUX input module extension

WARRANTY: LIMITED LIFETIME

  • A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
 WEIGHT HEIGHT WIDTH DEPTH
29.85 lbs 11.75 in 11.88 in 24.75 in
