Havis
Havis DS-DELL-426-3 Docking Station For Dell 5430, 7330, 5420, 5424 & 7424 Notebooks With Standard Port Replication, Triple Pass-Thru Antenna Connections & LIND Power Supply
Havis DS-DELL-426-3 Docking Station For Dell 5430, 7330, 5420, 5424 & 7424 Notebooks With Standard Port Replication, Triple Pass-Thru Antenna Connections & LIND Power Supply
SKU:DS-DELL-426-3
Regular price
$1,188.44 USD
Regular price
Sale price
$1,188.44 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FEATURES

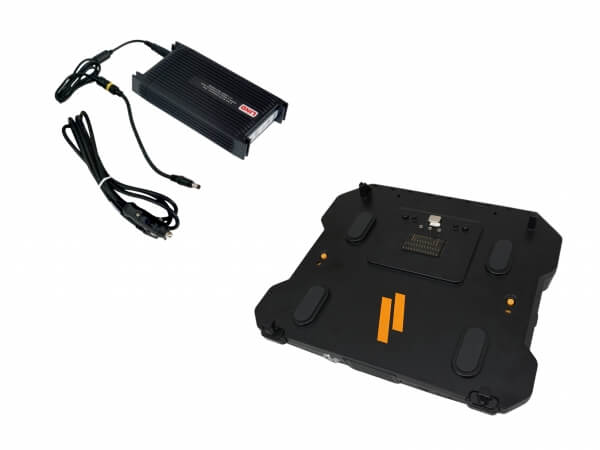

- Includes DS-DELL-425-3 docking station & LIND LPS-137 power supply
- Supports Dell's 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
- Adjustable & lockable front arms accommodate new and legacy notebooks
- One-handed docking & undocking (patent pending)
- Spring-loaded connector head
- Compact & lightweight
- U-style mounting bracket with seating notch for easy installation
- Rounded corners and edges for safety
- Access to all notebook buttons and ports when docked
- Standard port replication with integrated cable management system
- Also compatible with 5414, 7214, 5404 & 7204 notebooks
- Keyed lock
- Compatible with screen support (DS-DA-412, sold separately)
- Made in USA
SPECIFICATIONS
PRODUCT SPECIFICATIONS:
| Compatible devices: | Dell Rugged Notebooks 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204 |
|---|---|
| Certifications: | UL Safety (pending); Vibration Testing: MIL-STD 810H 514.8, Crash Test: SAE J1455 30mph crash testing, Cycle Test: latch handle & docking connectors mechanism 30,000 cycles, Environmental Testing: Hot/Cold operational (-20 C to 60 C) & storage (-40 C to 85 C), EMC: EN 50498:2010; ESD: ISO 10605:2008 |
| Connectivity includes: | Fully-powered USB 3.0 (3), USB: fully-powered USB 2.0 (1, front facing), Ethernet: RJ45 Jack, Gigabit LAN 10/100/1000 Mb/s. (1), speaker & mic: (1 each, front facing), input voltage: 19.5V DC, antenna connections: triple pass-through (TNC connectors) |
| Dimensions: | Height 10.33" (26.23 cm) with arms collapsed or 10.60" (26.91 cm) with arms extended, width 12.40" (31.48 cm), depth 2.73" (6.94 cm) |
| Product weight (dock only): | 3.30 lbs (1.50 kg) without mounting bracket, 4.75 lbs (2.15 kg) with mounting bracket |
| Gross weight: | 7 lbs |
