Gamber Johnson 7170-0971-02 Panasonic Toughbook® 54/55 Docking Station With Lind 120W Auto Bare Wire Leads Power Supply; Lite Port; Dual Rf

Gamber Johnson 7170-0971-02 Panasonic Toughbook® 54/55 Docking Station With Lind 120W Auto Bare Wire Leads Power Supply; Lite Port; Dual Rf

7170-0971-02

$1,763.00 USD
$1,763.00 USD
Sale Sold out
Shipping calculated at checkout.

Check Estimated Lead Time!

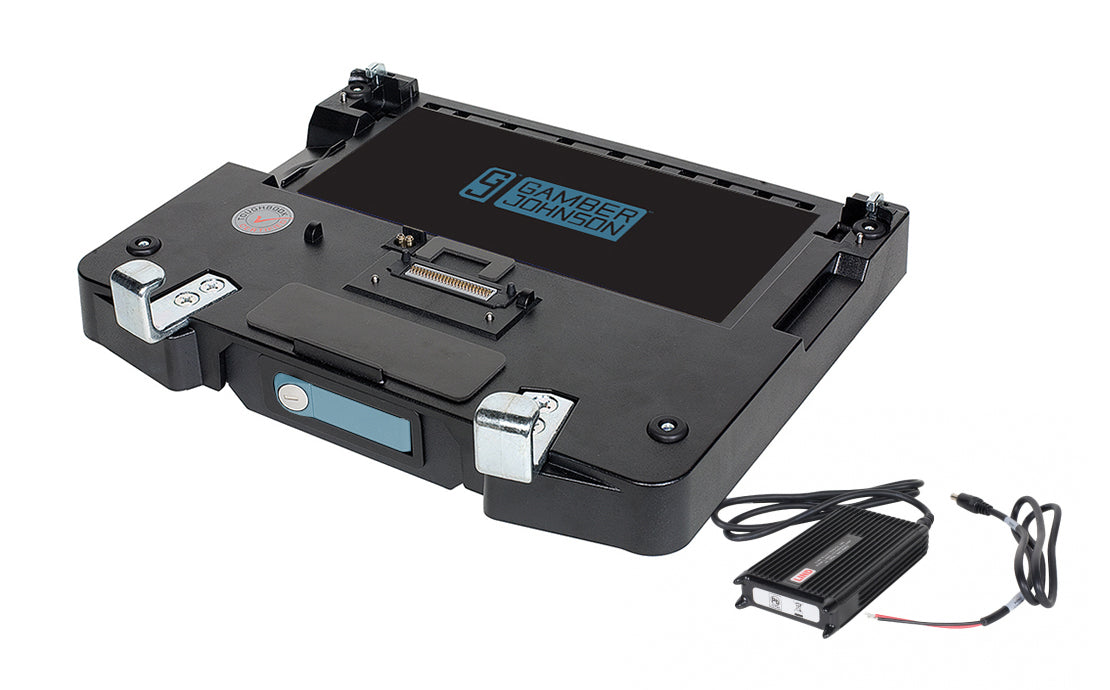

Gamber-Johnson TOUGHBOOK 54 Docking Station Kit – Includes Panasonic TOUGHBOOK 54 Docking Station with Lite Port Replication; Dual RF (7160-0577-22) and Lind external power supply (7300-0461).

  • Weight

    8.50 lbs. / 3.9 kg

  • Height

    3.50 in / 8.9 cm

  • Width

    13.48 in / 34.2 cm

  • Depth

    11.85 in / 31.0 cm

Features:

  • Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
  • Designed to MIL-STD 810G test procedures and complies with FCC Class A standards
  • Small footprint - designed to maximize available space inside of vehicle
  • Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as TOUGHBOOK Certified
  • Rear-facing l/O ports; integrated cable strain relief system; and convenient cable management system
  • Spring-loaded docking connector to ensure connectivity in the roughest terrain
  • Front safety bracket and rear corners ensure proper alignment and docking connectivity
  • Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked.
  • This docking station accommodates the optional modular expansion area on the TOUGHBOOK 54/55 computer
  • Special access area for smart card reader makes it easy to insert and eject card
  • Push button latch with keyed lock for theft deterrence:
    • Push the latch to release the docking connector
    • Insert computer and push latch closed to dock computer
  • Can be used with Motion Attachments with the VESA 75mm hole pattern only
  • Rugged composite/steel construction with black powder coat finish for long-term durability
  • Antenna switch position:
    • Switch set toward outside of dock: Uses exterior antenna
    • Switch set to inside of the dock: Uses laptop antenna
