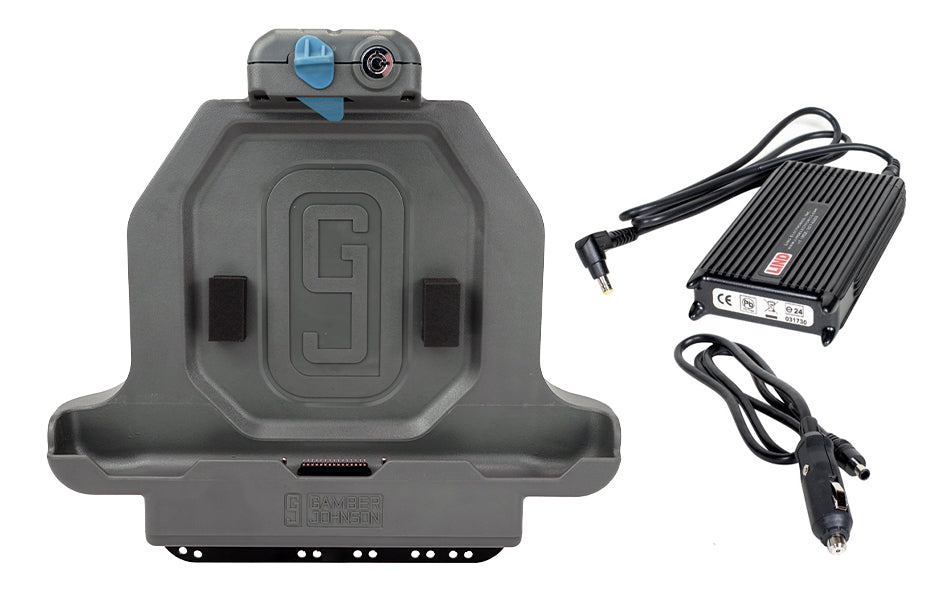

Gamber-Johnson’s Zebra ET51/56 8? SLIM Port Replication docking station provides a full range of I/O ports to connect peripherals. This dock features a complete cable restraint-system and the front-facing release latch button makes one-handed docking/release very easy. This kit includes a LIND auto power adapter. *Starting Aug 23rd 2022 Gamber-Johnson does not offer HDMI output on all ET5X docks because of global video chip shortages

• Weight

  Docking Station: 2.2 lbs / 1 kg Power Supply: 1.01 lbs / 0.46 kg

• Height

  Docking Station: 8.75 in / 22.23 cm Power Supply: 1.2 in / 3.05 cm

• Width

  Docking Station: 9.93 in / 25.22 cm Power Supply: 2.5 in / 6.35 cm

• Depth

  Docking Station: 3.12 in / 7.92 cm Power Supply: 5.15 in / 13.08 cm

Features:

• Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
• This dock does not accommodate ET51/56 accessories
• Front camera on ET5X accessible when the tablet is in the docking station
• Compatible with Windows or Android operating systems
• Access to all control buttons and ports while the tablet is safely docked
• POGO pin connector provides power to charge the Zebra tablet while docked
• Bottom-facing I/O ports; integrated cable restraint/cable management system
• Guide pins prevent damage to the docking connection when docking the tablet
• Composite/aluminum design for reduced weight and extended durability
• Designed with rounded edges to enhance personal safety
• Keyed lock for security and theft deterrence
• Forward facing docking latch/release for easy one-handed operation:
  • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
  • To remove, lift latch to disengage and pull computer out of docking station
• VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products
• Kit Includes:
  • Zebra ET51/56  8" SLIM Port Replication Docking Station
  • LIND Power adapter
  • Mounting hardware
  • Installation guide
