Gamber Johnson 7170-0698-03 Samsung Galaxy Tab Active Pro Docking Station
Gamber Johnson 7170-0698-03 Samsung Galaxy Tab Active Pro Docking Station
SKU:7170-0698-03
Regular price
$739.00 USD
Regular price
Sale price
$739.00 USD
Unit price
per

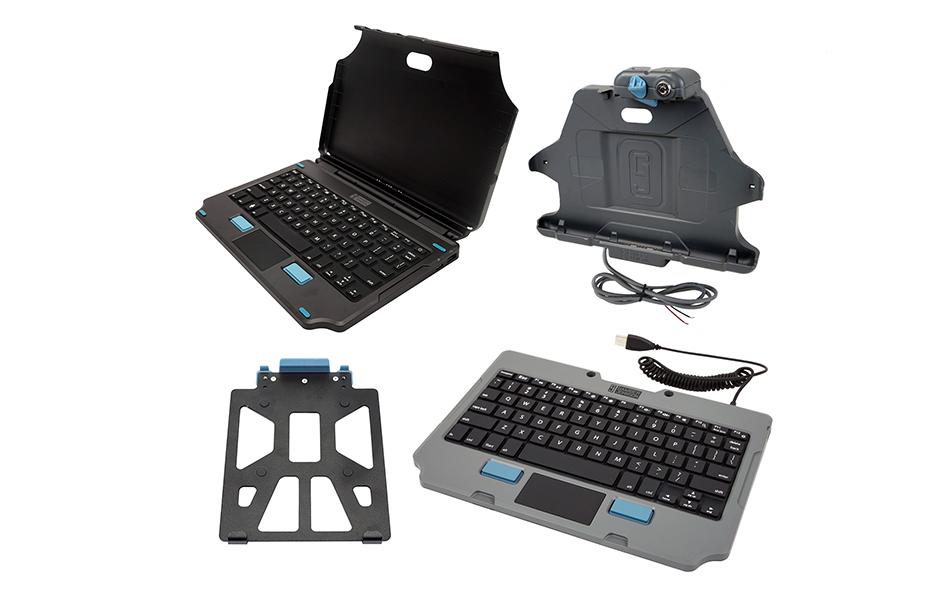

This kit combines the Samsung Galaxy Tab Active Pro Docking Station; 2-in-1 Attachable Keyboard; and Rugged Lite Backlit Keyboard with Quick Release Keyboard Cradle. This kit is the ultimate combination for the mobile worker looking for an full computer functionality both in the vehicle and out in the field.
Features:
2-in-1 Keyboard Features
- Integrated center touchpad with right and left mouse buttons
- 76-key keyboard with 12 function keys for custom operation
- Silicone rubber keys with white lettering and a rugged polycarbonate case
- POGO docking connector links the tablet to the keyboard
- USB-C port charges the tablet without having to separate it from the keyboard
- USB- A port to attach a mouse; another peripheral; or flash drive
- Easily connect the tablet to the keyboard; slip the bottom of the tablet into the case and snap the top of the case over the tablet
- Samsung S Pen is accessible when the tablet is docked in the keyboard case
- All the Samsung Tab Active Pro control buttons and rear camera are accessible when the tablet is docked onto the keyboard
- Friction hinge and screen footrest position the tablet at a comfortable viewing angle
- Low-profile ergonomic design for ease of use in a mobile environment
- Rubber feet to prevent slippage
- Increase portability by adding one of our compatible accessories (7170-0888-00; 7400-0020-01; and 7160-1615-00)
- Available in US English (7160-1450-00); UK (7160-1450-01); German (7160-1450-02); French (7160-1450-03); Spanish (7160-1450-04); French CA (7160-1450-05 ); Thai (7160-1450-06); Arabic (7160-1450-07); Nordic (7160-1450-08); and Hebrew (7160-1450-09). Contact Gamber-Johnson for other language options.
- Not designed to be vehicle mounted
Docking Station Features
- Designed for the Samsung Galaxy Tab Active Pro 10 Inch rugged tablet with rugged case
- Dual powered USB ports; 1.5A for each port for connecting peripheral devices
- 10-40V power input range to support a wide range of mobile applications
- Access to all control buttons; camera; ports and stylus while the tablet is safely docked
- Dock design is compatible with Samsung's built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
- Simple; one-handed docking and release operation:
- Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages
- Push latch button up with your thumb then remove the tablet from the docking station
- POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked
- Barrel Key lock for theft deterrence
- VESA 75mm mounting pattern; compatible with Zirkona mounting products
- Approximately 66" (167.6 cm) power cable with bare wire end
- Can be mounted on a flat vertical surface
- Composite design for reduced overall weight
Rugged Lite Backlit Keyboard Features
- Integrated center Touchpad with right and left mouse button
- 76-key keyboard with 12 function keys for custom operation
- Integrated red backlighting with four levels of intensity and ON/OFF control
- Low-profile ergonomic design for ease of use in a mobile environment
- Emergency Key - a configurable key that can be used to send for emergency help or assistance
- Silicone rubber keys with white lettering and a rugged ABS poly-carbonate case
- Input cable: USB Type A male connector (1.5 m/59.0 inch cable)
- Supports Windows (XP or Above); Android; Linux; and Mac OS / iOS platforms
- USB- A port to attach a mouse; another peripheral; or flash drive (USB 2.0 500mA)
- Rubber feet to prevent slippage
- Keyboard is compatible with Gamber-Johnson Quick Release Keyboard Cradle (7160-1470-00)
- Available in US English (7160-1683-00); UK (7160-1683-01); German (7160-1683-02); French (7160-1683-03); and Spanish (7160-1683-04). Contact Gamber-Johnson for other language options. Minimum Order Quantity 250 units on all languages other than US English.
Quick Release Keyboard Cradle Features
- Black powder coat finish
- VESA 75mm mounting pattern; attach to most Gamber-Johnson motion attachments
- Easily insert or release the keyboard:
- Insert bottom of keyboard into cradle; match indents in keyboard with hooks on cradle; then push top of keyboard into cradle and engage latch
- To remove; push latch to disengage and pull keyboard out of cradle
- Kit Includes:
- Rugged Lite Backlit Keyboard (7160-1683-00)
- Quick Release Keyboard Cradle for the Rugged Lite Keyboard (7160-1470-00)
- Samsung Galaxy Tab Active Pro Docking Station (7160-1418-00)
- 2-in-1 Attachable Keyboard (7160-1450-00)
