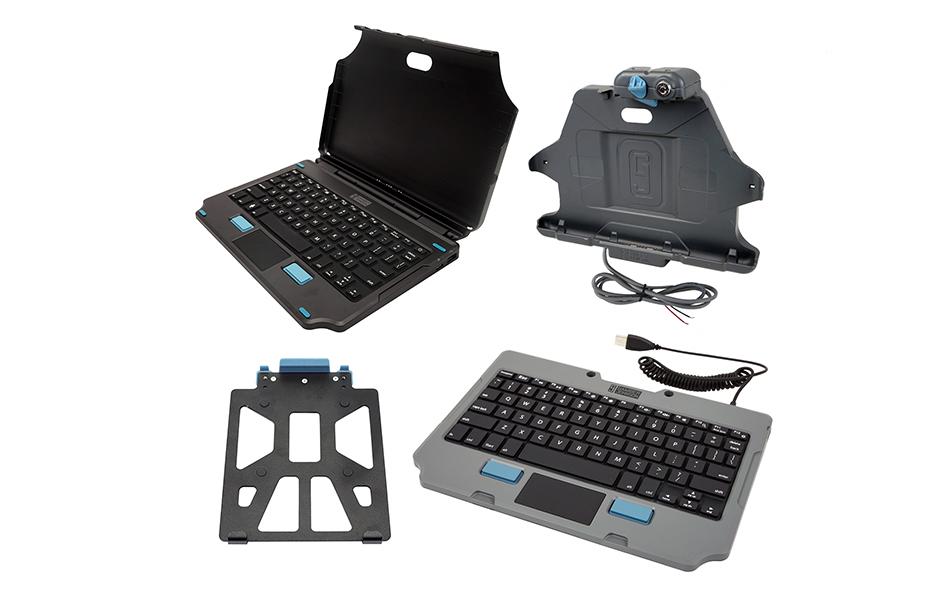

This kit combines the Samsung Galaxy Tab Active Pro Docking Station, TA Pro 2in1 Attachable Keyboard, and Rugged Lite Keyboard with Quick Release Keyboard Cradle. This kit is the ultimate combination for the mobile worker looking for an ergonomic vehicle setup but also uses the tablet outside the vehicle to perform work in the field.

• Weight

  Keyboard: 1 lbs / 0.45 kg Keyboard Tray: 0.25 lbs / 0.11 kg Docking Station: 1.3 lbs / 0.59 kg 2-in-1 Keyboard: 1.6 lbs / 0.73 kg

• Height

  Keyboard: 10.31 in / 26.19 cm Keyboard Tray: 5.5 in / 13.97 cm Docking Station: 8.5 in / 21.59 cm 2-in-1 Keyboard: 1.5 in / 3.81 cm

• Width

  Keyboard: 0.56 in / 1.42 cm Keyboard Tray: 0.55 in / 1.4 cm Docking Station: 10.5 in / 26.67 cm 2-in-1 Keyboard: 10.31 in / 26.19 cm

• Depth

  Keyboard: 7.12 in / 18.08 cm Keyboard Tray: 7.5 in / 19.05 cm Docking Station: 2.5 in / 6.35 cm 2-in-1 Keyboard: 7.56 in / 19.2 cm

Features:

DOCKING STATION FEATURES

• Designed for the Samsung Galaxy Tab Active Pro 10 Inch rugged tablet with rugged case
• Dual powered USB ports; 1.5A for each port for connecting peripheral devices
• 10-40V power input range to support a wide range of mobile applications
• Access to all control buttons, camera, ports and stylus while the tablet is safely docked
• Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
• Simple, one-handed docking and release operation:
  • Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages
  • Push latch button up with your thumb then remove the tablet from the docking station
• POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked
• Barrel Key lock for theft deterrence
• VESA 75mm mounting pattern; compatible with Zirkona mounting products
• Approximately 66” (167.6 cm) power cable with bare wire end
• Can be mounted on a flat vertical surface
• Composite design for reduced overall weight

2-IN-1 KEYBOARD FEATURES

• Integrated center touchpad with right and left mouse buttons
• 76-key keyboard with 12 function keys for custom operation
• Silicone rubber keys with white lettering and a rugged polycarbonate case
• POGO docking connector links the tablet to the keyboard
• USB-C port charges the tablet without having to separate it from the keyboard
• USB- A port to attach a mouse, another peripheral, or flash drive
• Easily connect the tablet to the keyboard; slip the bottom of the tablet into the case and snap the top of the case over the tablet
• Samsung S Pen is accessible when the tablet is docked in the keyboard case
• All the Samsung Tab Active Pro control buttons and rear camera are accessible when the tablet is docked onto the keyboard
• Friction hinge and screen footrest position the tablet at a comfortable viewing angle
• Low-profile ergonomic design for ease of use in a mobile environment
• Rubber feet to prevent slippage
• Increase portability by adding one of our compatible accessories (7170-0888-00, 7400-0020-01, and 7160-1615-00)
• Available in US English (7160-1450-00), UK (7160-1450-01), German (7160-1450-02),  French (7160-1450-03), Spanish (7160-1450-04), French CA (7160-1450-05 ), Thai (7160-1450-06), Arabic (7160-1450-07), Nordic (7160-1450-08), and Hebrew (7160-1450-09). Contact Gamber-Johnson for other language options.
• Not designed to be vehicle mounted
• *Note: To prevent tablet battery drainage, plug in power to the keyboard, turn off the tablet, or remove it from the keyboard
• Specifications:
  • USB-A (2.0) Port: 5V@500mA
  • Tablet input power: 5.4V, 1.5A
  • Designed and tested to MIL-STD 810G shock and vibration specifications
  • Temperature range: OPERATING: -20°C to 60°C STORAGE: -40°C to 85°C
  • Designed to IP54 ingress specifications
  • Two million actuation per key

QUICK RELEASE KEYBOARD CRADLE?? FEATURES

• Black powder coat finish
• VESA 75mm mounting pattern, attach to most Gamber-Johnson motion attachments
• Easily insert or release the keyboard:
  • Insert bottom of keyboard into cradle, match indents in keyboard with hooks on cradle, then push top of keyboard into cradle and engage latch
  • To remove, push latch to disengage and pull keyboard out of cradle
• Kit Includes:
  • Rugged Lite Keyboard (7160-1449-00)
  • Quick Release Keyboard Cradle for the Rugged Lite Keyboard (7160-1470-00)
  • Samsung Galaxy Tab Active Pro Docking Station (7160-1418-00)
  • 2-in-1 Attachable Keyboard (7160-1450-00)
