Gamber Johnson

Gamber Johnson 7170-0698-00 Samsung Galaxy Tab Active Pro/Active4 Pro Docking Station

Gamber Johnson 7170-0698-00 Samsung Galaxy Tab Active Pro/Active4 Pro Docking Station

SKU:7170-0698-00

Regular price $518.00 USD
Regular price Sale price $518.00 USD
Sale Sold out
Shipping calculated at checkout.

Check Estimated Lead Time!

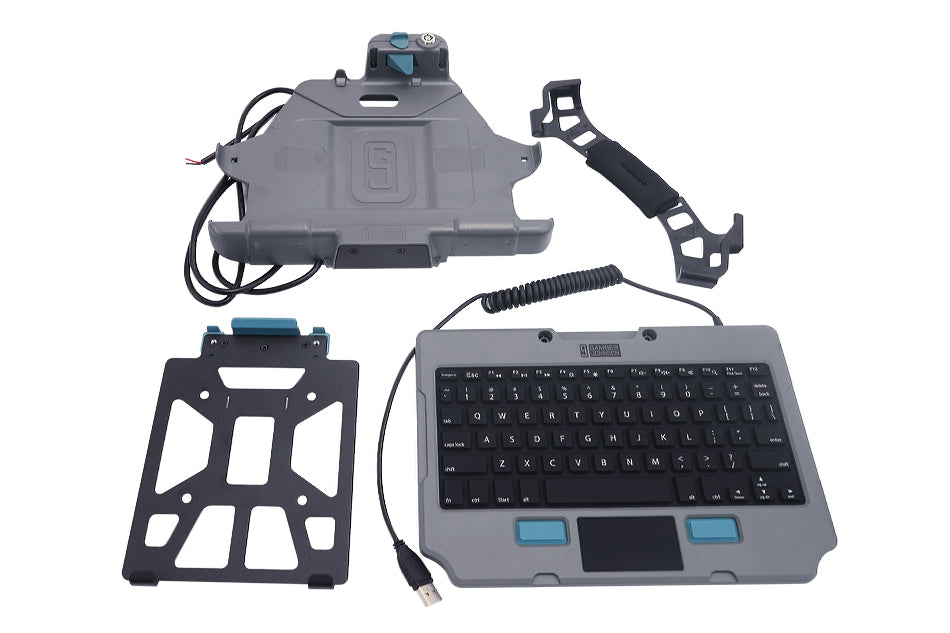

This kit combines the Samsung Galaxy Tab Active Pro/Active4 Pro Docking Station with the Hand strap and the Rugged Lite Keyboard with Quick Release Keyboard Cradle. This kit is the ultimate combination for the mobile worker looking for an ergonomic vehicle setup but also uses the tablet outside the vehicle to perform work in the field.

  • Weight

    Docking Station: 1.3 lbs / 0.58 kg Keyboard: 1 lb / 0.45kg

  • Height

    Docking Station: 8.5 in / 21.5 cm Keyboard: 10.31 in / 26.18 cm

  • Width

    Docking Station: 10.5 in / 26.6 cm Keyboard: 0.56 in / 1.42 cm

  • Depth

    Docking Station: 2.5 in / 6.35 cm Keyboard: 7.12 in / 18.08 cm

Features:

Docking Station

  • Designed for the Samsung Galaxy Tab Active Pro/Active4 Pro 10-Inch rugged tablet with rugged case
  • Dual powered USB ports; 1.5A for each port for connecting peripheral devices
  • 10-40V power input range to support a wide range of mobile applications
  • Access to all control buttons, camera, ports and stylus while the tablet is safely docked.
  • Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
  • Simple, one-handed docking and release operation:
    • Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages.
    • Push latch button up with your thumb then remove the tablet from the docking station.
  • POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked.
  • Barrel Key lock for theft deterrence
  • VESA 75mm mounting pattern; compatible with Zirkona mounting products.
  • Approximately 66” (167.6 cm) power cable with bare wire end
  • Can be mounted on a flat vertical surface.
  • Composite design for reduced overall weight.

Hand Strap

  • Designed for the Samsung Galaxy Tab Active Pro/Active4 Pro 10- Inch rugged tablet with rugged case
  • Compatible with Gamber-Johnson's Tab Active Pro/Active4 Pro docking station
  • Easily dock the tablet in the docking station with the hand strap attached
  • Hand strap easily slips over the diagonal corners of the tablet
  • Cushioned pad for comfort

Rugged Lite Keyboard

  • Integrated center Touchpad with right and left mouse button
  • 76-key keyboard with 12 function keys for custom operation
  • Low-profile ergonomic design for ease of use in a mobile environment
  • Emergency Key - a configurable key that can be used to send for emergency help or assistance
  • Silicone rubber keys with white lettering and a rugged ABS poly-carbonate case
  • Input cable: USB Type A male connector (1.5 m/59.0 inch cable)
  • Supports Windows (XP or Above), Android, Linux, and Mac OS / iOS platforms
  • USB- A port to attach a mouse, another peripheral, or flash drive (USB 2.0 500mA)
  • Rubber feet to prevent slippage
  • Keyboard is compatible with Gamber-Johnson Quick Release Keyboard Cradle (7160-1470-00)
  • Available in US English (7160-1449-00), UK (7160-1449-01), German (7160-1449-02), French (7160-1449-03), and Spanish (7160-1449-04). Contact Gamber-Johnson for other language options.

Quick Release Keyboard Cradle

  • Black powder coat finish
  • VESA 75 mounting pattern, attach to most Gamber-Johnson motion attachments
  • Easily insert or release the keyboard:
    • Insert bottom of keyboard into cradle, match indents in keyboard with hooks on cradle, then push top of keyboard into cradle and engage latch
    • To remove, push latch to disengage and pull keyboard out of cradle
  • Compatible with Gamber-Johnson Rugged Lite Keyboard (7160-1449-00)
