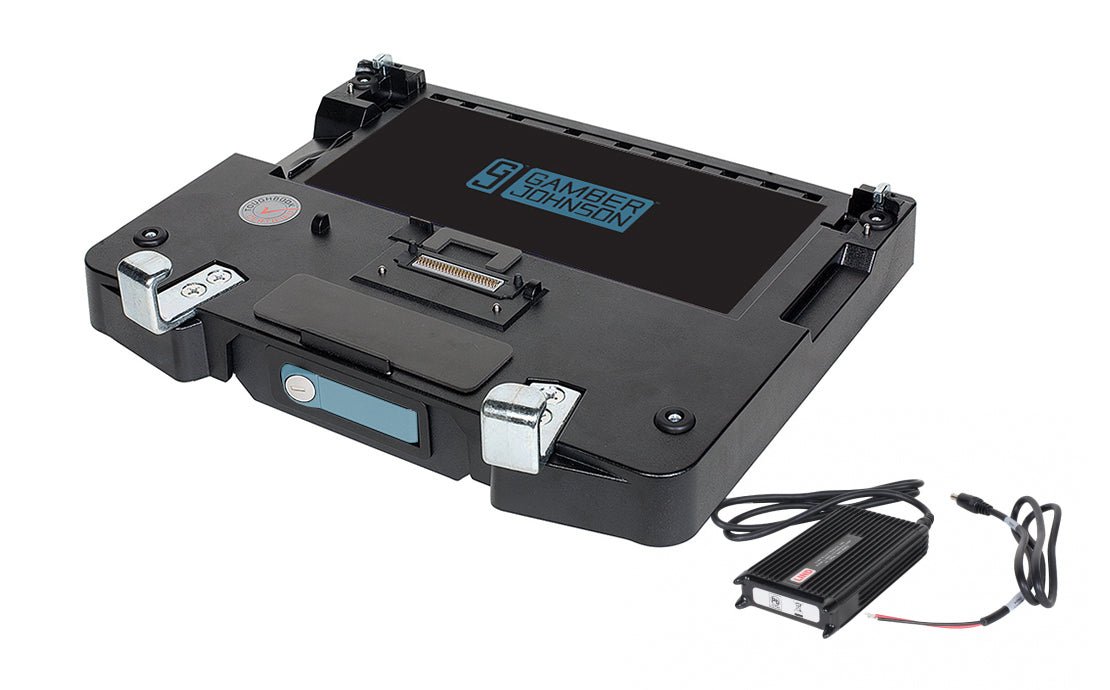

Gamber-Johnson TOUGHBOOK 54 docking station kit includes Panasonic TOUGHBOOK 54 docking station with No RF (Item No. 7160-0577-00) and Lind external power supply (Item No. 7300-0461).

• Weight

  8.50 lbs. / 3.9 kg

• Height

  3.50 in / 8.9 cm

• Width

  13.48 in / 34.2 cm

• Depth

  11.85 in / 30.1 cm

Features:

• Designed to MIL-STD 810G test procedures and complies with FCC Class A standards
• Small footprint - designed to maximize available space inside of vehicle
• Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as TOUGHBOOK Certified
• Rear-facing l/O ports, integrated cable strain relief system, and convenient cable management system
• Spring-loaded docking connector to ensure connectivity in the roughest terrain
• Front safety bracket and rear corners ensure proper alignment and docking connectivity
• Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked.
• This docking station accommodates the optional modular expansion area on the TOUGHBOOK 54/55 computer
• Special access area for smart card reader makes it easy to insert and eject card
• Push button latch with keyed lock for theft deterrence:

                -Push the latch to release the docking connector

                -Insert computer and push latch closed to dock computer

• Can be used with Motion Attachments with the VESA 75mm hole pattern only
• Rugged composite/steel construction with black powder coat finish for long-term durability
• Antenna switch position:

                -Switch set toward outside of dock: Uses exterior antenna

                -Switch set to inside of the dock: Uses laptop antenna
