FEATURES

• No-drill solution that attaches to the vehicle without the need to order a separate top plate. Leg kit is provided with the console box.
• Two 12 volt plug inserts located on passenger side
• USB/MP3/SD card from factory console can be relocated on passenger side using knock-outs or USB/MP3/SD card/12 Volt from factory console can be relocated using faceplate (item no. 15250)
• Front plate of console (underneath the dash) allows a fuse block or Lind shut down timer using pre-configured mounted holes
• Computer can be center mounted in two locations:
  1. Off-set towards the passenger on the “smiley face pattern"
  2. On the 3-bolt pattern closer to the driver for easy articulation access
• Heavy gauge steel, fully welded construction for long-term durability
• Black powder coat finish for maximum corrosion resistance
• Box will ship fully assembled
• 3 faceplates and 3 filler panels are included
• Console box works with manual 4x4 shift lever
• Must order as is. There are no substitutions for accessories. Accessories may need to be assembled.

WARRANTY: LIMITED LIFETIME

• A limited lifetime warranty is against manufacturer defects, not normal wear and tear.

KIT INCLUDES

• Console box (item no. 7160-0548)
• Leg kit (item no. 7160-0509)
• Cup holder (item no. 7160-0846)
• Armrest (item no. 7110-1013)
• Wiring chase (item no. 7110-1024)
• Mongoose motion attachment (item no. 7160-0220)

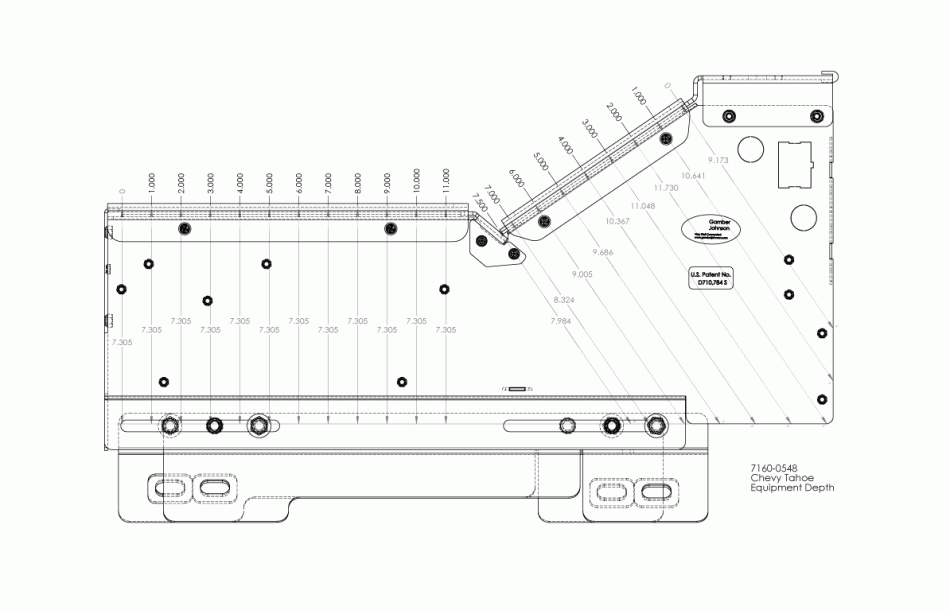

MOUNTING SPACE

• Vertical angled section: 7.5” (19.1 cm) of mounting space and is designed to house 1 to 2 full sized radios or a larger radio such as the Motorola APX 09
• Horizontal Section: Accommodates 7" (17.78 cm) of mounting space including internal cup holder (or 11.5" without cupholder) and is designed to house radio control heads and accessories

COMPATIBLE VEHICLES

2014-2018 Chevrolet Silverado 1500
2015-2019 Chevrolet Silverado 2500/3500
2015-2020 Chevrolet Suburban/Tahoe
2014-2018 GMC Sierra 1500
2015-2019 GMC Sierra 2500/3500
2015-2020 GMC Yukon/Yukon XL
