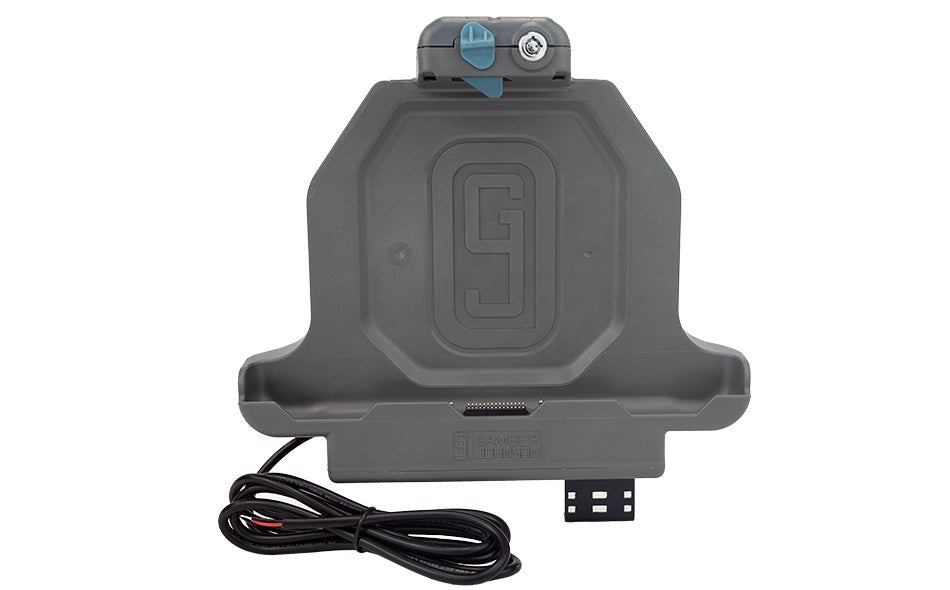

Gamber-Johnson’s Zebra ET51/56 8? SLIM Dual USB docking station provides dual powered (1.5A each) USB ports; strong enough to connect a long-range scanner and other peripherals. The front-facing release latch button makes one-handed docking/release very easy and the 75mm VESA mounting pattern will attach to most Gamber-Johnson motion attachments. Now shipping.

• Weight

  1.7 lbs / 0.77 kg

• Height

  8.75 in / 22.23 cm

• Width

  9.93 in / / 25.22 cm

• Depth

  3.12 in / 7.92 cm

Features:

• Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
• This docking station does not accommodate ET51/56 accessories
• Front camera on ET5X accessible when the tablet is in the docking station
• Compatible with Windows or Android operating systems
  POGO pin connector and internal powered PCB provides power to charge the Zebra tablet while docked
• 8-40V power input range with power filtering PCB
• Dual powered USB ports; 1.5A for each port to connect peripheral devices
• Access to all control buttons and ports while the tablet is safely docked
• Bottom-facing I/O ports; integrated cable restraint/cable management system
• Approximately 60” (152.4 cm) power cable with bare wire end to attach to power source
• Composite/aluminum design for reduced weight and extended durability
• Designed with rounded edges to enhance personal safety
• Keyed lock for security and theft deterrence
• Forward facing docking latch/release for easy one-handed operation:

  • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
  • To remove, lift latch to disengage and pull computer out of docking station
• VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products
• Kit Includes:
  • Zebra ET51/56 8" SLIM Dual USB Docking Station
  • Mounting hardware
  • Installation guide
