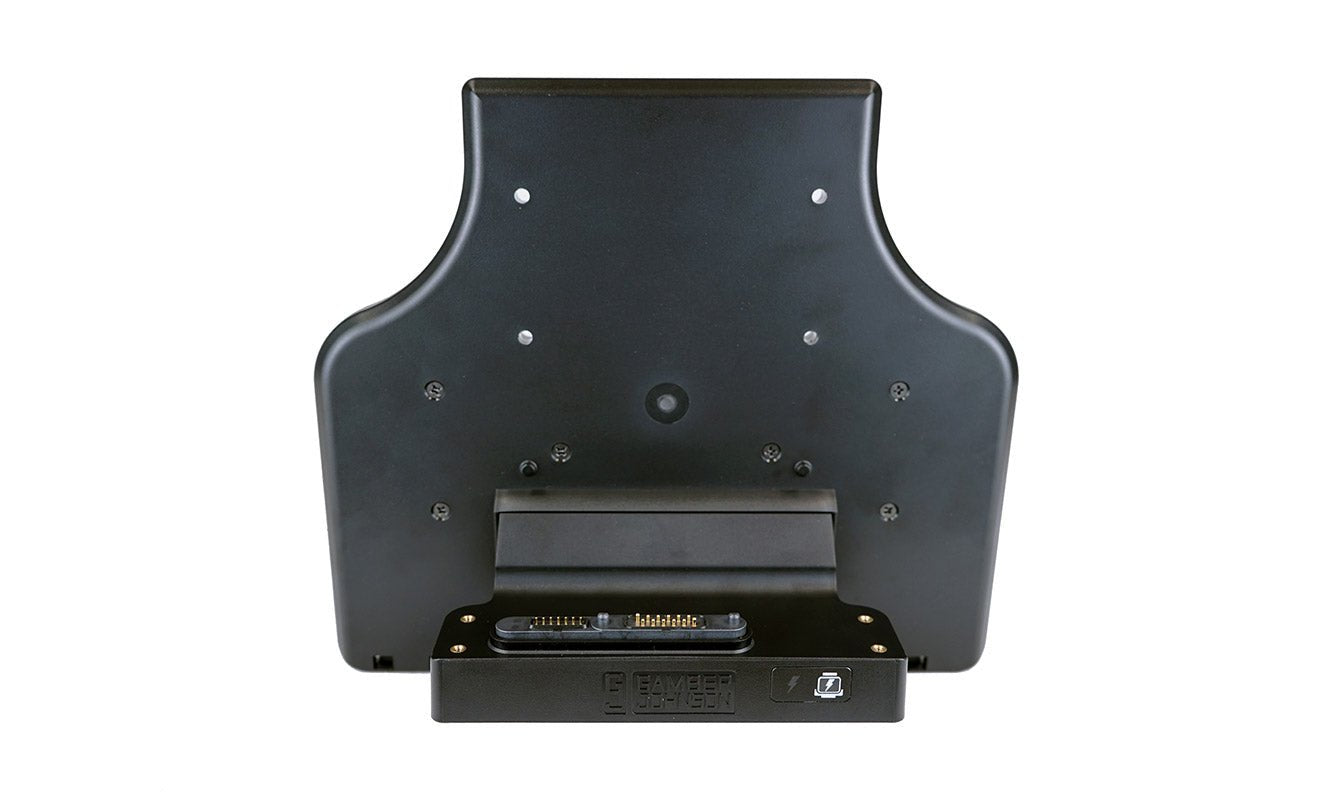

This add-on dock module can be attached to your existing Zebra Tablet vehicle cradle to transform it into a docking station with full port replication.

• Weight

  1.23 lbs / .55 kg

• Height

  9.0 in / 22.86 cm

• Width

  10.0 in / 25.4 cm

• Depth

  3.75 in / 9.52 cm

Features:

• This Module is compatible with the Zebra L10 vehicle cradle 7110-1292
• This module is not compatible with the Zebra xDIM G3 Docking Interface Module
• Sealed docking connector to protect against moisture
• RS232 pin 9 function switch, activate switch to power pin 9 (825mA)
• Dock LED indicator lights: Tablet is docked, Dock is Powered
  Access door to internal USB 2.0 port provides additional security
• Floating protected docking connector for years of reliable connectivity
• Bottom-facing port replication for connection to remote peripherals
• Integrated cable straint and cable management system
• VESA 75mm and 50 x 100mm mounting patterns
