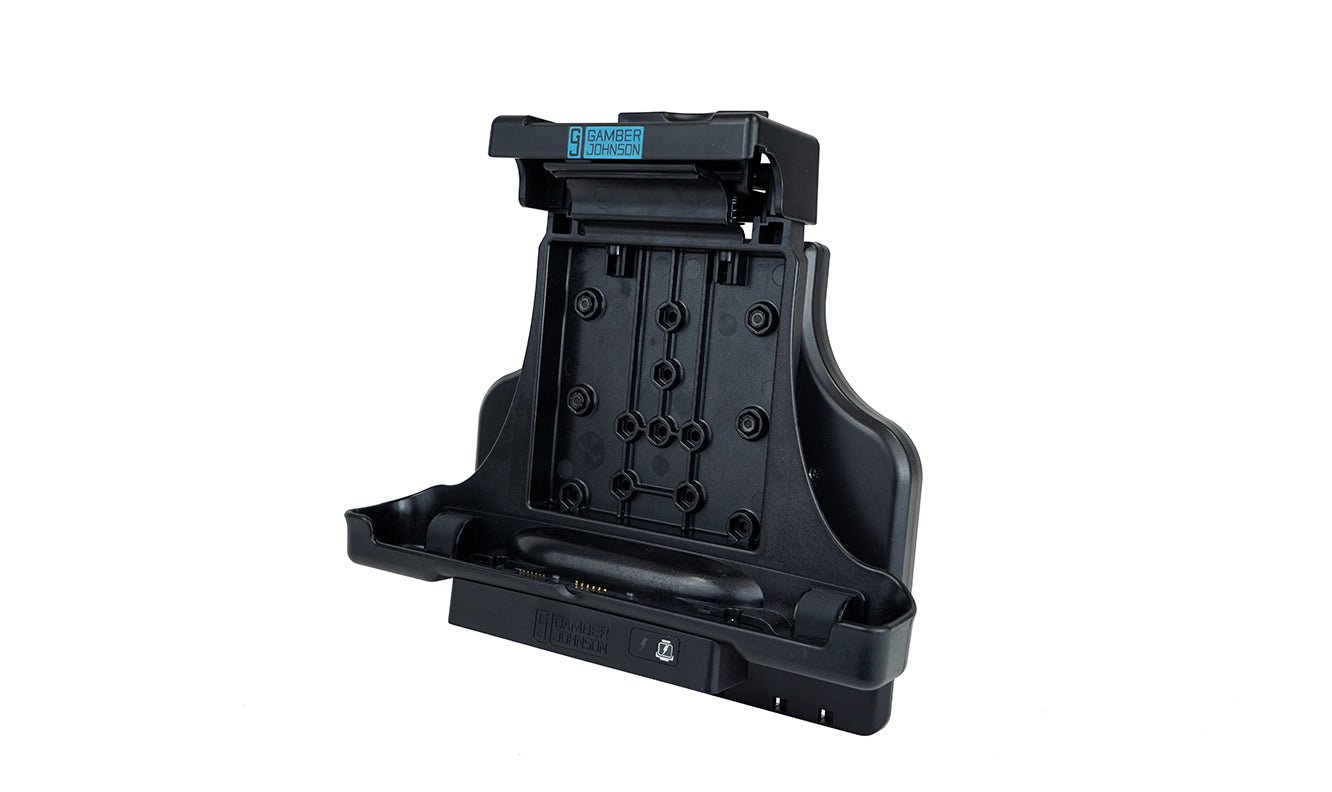

This Zebra tablet vehicle docking station for the Zebra L10 xPad or xSlate tablet provides full port replication with powered RS232; and a keyed lock for security.

• Weight

  3.3 lbs / 1.49 kg

• Height

  10.63 in / 27.0 cm

• Width

  11.81 in / 29.99 cm

• Depth

  3.94 in / 10.0 cm

Features:

• Compatible with the Zebra L10 ANDROID xPad and xSlate tablets
• Docking Station design accommodates the L10 extended battery, Smart Card/CAC Reader module, True Serial(RS232) module, Hard handle, Soft handle, and Shoulder Strap.
• Sealed docking connector to protect against moisture
• RS232 on power pin 9 (825mA)
• LED indicator lights show when "tablet is docked" and “dock is powered”
• Access door to internal USB 2.0 port provides additional security
• Floating docking connector for reliable docking activation
  Bottom-facing I/O ports; integrated cable restraint/cable management system
• Forward facing docking latch/release for easy one handed operation
• Insert bottom of computer into docking station, push top of computer in and pull latch forward until latch engages
• To remove, lift latch to disengage and pull computer out of docking station
• Keyed alike lock for security and theft deterrence
• VESA 75mm and 50 x 100mm mounting patterns
• Rounded edges to enhance personal safety
• Composite/aluminum design for reduced weight and durability
• Optional: RF pass-through SMA - (WWAN Main, GPS, WWAN Aux, WIFI Main, WIFI Aux)
