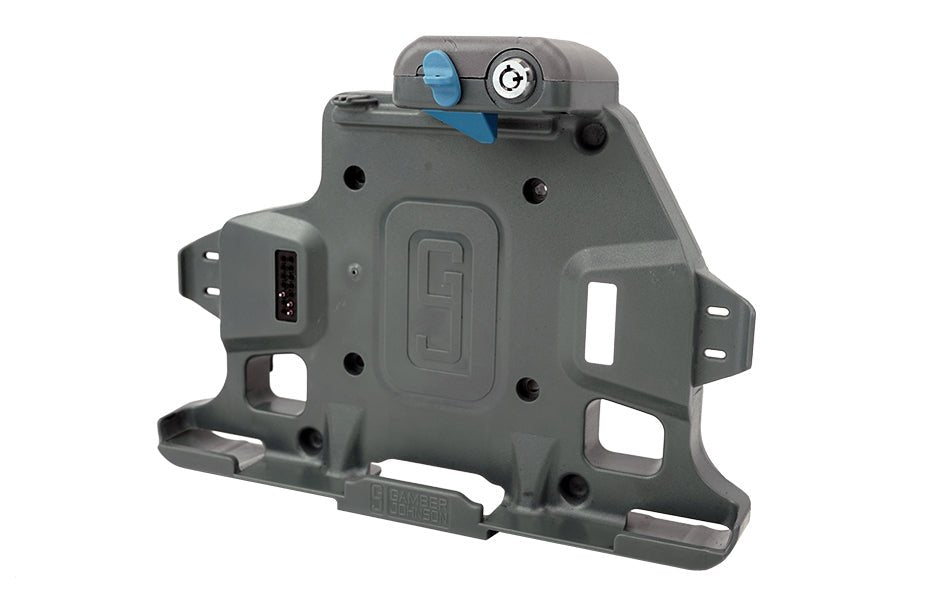

This Charging Cradle for the Firehawk FT-810 tablet provides a pogo pin charging connector designed to charge the FT-810 tablet all day long. This charging cradle also features an easy one-hand cradle/release latching mechanism with a keyed lock for additional security. Mount this cradle in a vehicle or on a wall using the VESA 75 mounting pattern and a motion attachment from Gamber-Johnson. Contact your sales representative or call 1-800-456-6868 for pricing.

• Weight

  0.77 lbs / 0.35 kg

• Height

  7.12 in / 18.08 cm

• Width

  9.66 in / 24.54 cm

• Depth

  2.5 in / 6.44 cm

Features:

• Designed for the Firehawk FT-810 tablet computer
• Kit includes Firehawk FT-810 Charging Cradle (Item No. 7160-1424-10) and 12-24Vdc , 5V with Bare Wire Lead (Item No. 19161)
  12-24V power input range to support a wide range of mobile applications
• 5V, 3A Max of output
• Simple, one-handed operation:
  • Insert bottom of Firehawk tablet into the docking station and push top of the tablet in until the lock engages
  • Push latch button up with your thumb then remove the tablet from the docking station
• Access to all control buttons and camera while docked
• USB-C charging port with integrated cable restraint (to connect to power supply), includes USB-C charging cable with bare wire end
• VESA 75mm mounting pattern, compatible with Zirkona mounting products
• Composite design for reduced overall weight
• Kit Includes:
  • Firehawk FT-810 Charging Cradle
  • Power adapter with wiring harness
  • Installation Guide
  • Mounting Hardware
