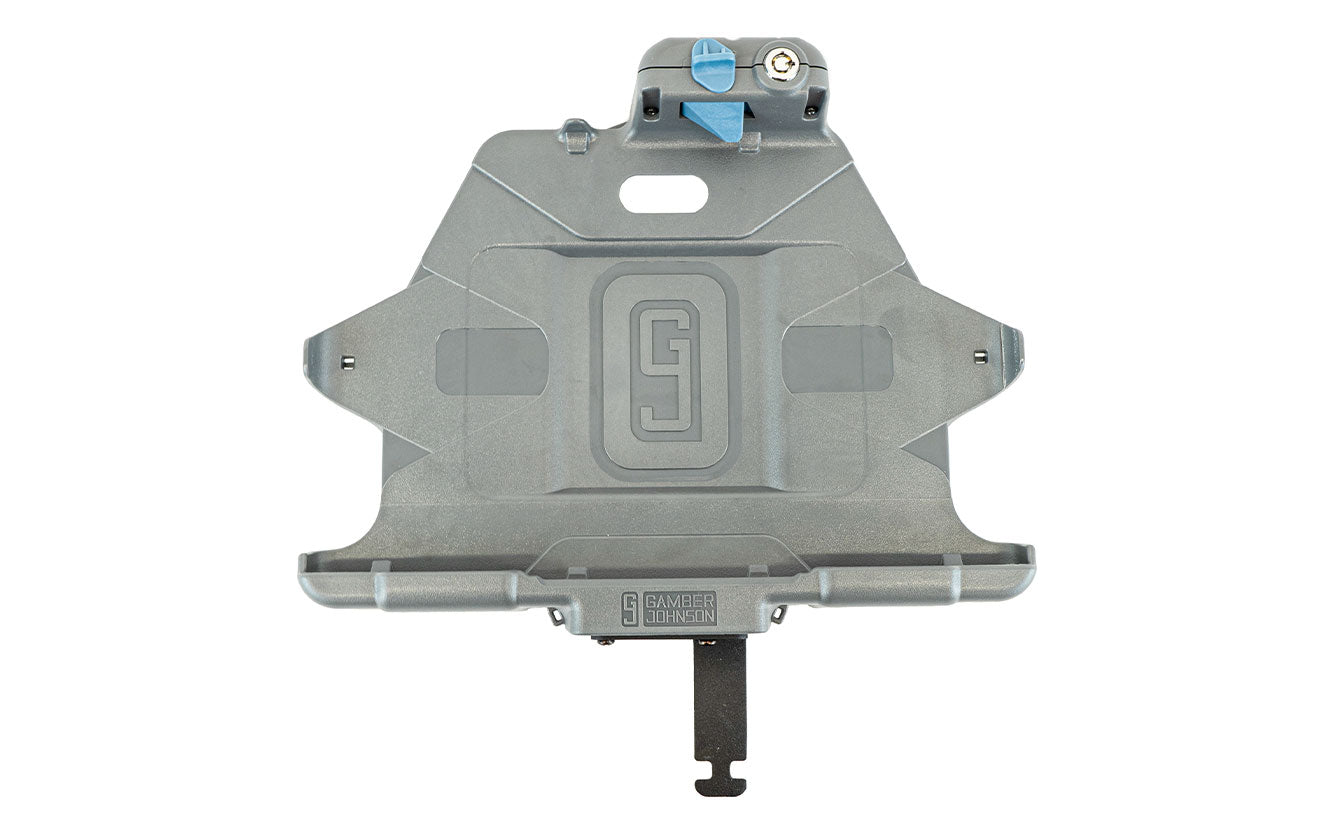

This Gamber-Johnson charging cradle is compatible with both the Samsung Galaxy Tab Active Pro and Tab Active4 Pro. This charging cradle features a POGO pin connector and includes a wiring harness and power supply to provide power to the tablet’s battery allowing it to stay charged and usable all day long in a material handling or other rugged environments.

• Weight

  1.1 lbs / 0.5 kg

• Height

  8.5 in / 21.59 cm

• Width

  10.5 in / 26.67 cm

• Depth

  2.5 in / 6.35 cm

Features:

• Designed for the Samsung Galaxy Tab Active PRO/ Active4 PRO 10 Inch rugged tablet with rugged case
• Access to all control buttons, camera, ports and stylus while the tablet is safely docked.
• Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
• Simple, one-handed docking and release operation:

  • Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages.
  • Push latch button up with your thumb then remove the tablet from the docking station.
• Push-button lock with key for theft deterrence.
• VESA 75mm mounting pattern; compatible with Zirkona mounting products.
• Can be mounted on a flat vertical surface.
• Composite design for reduced overall weight.
• 12-24V power input range to support a wide range of mobile applications
• 5V, 3A Max of output
• USB-C charging port with integrated cable restraint (to connect to power supply), includes USB-C charging cable with bare wire end
• Kit Includes:
  • Samsung Tab Active Pro/Active4 Pro Charging Cradle (7160-1418-40)
  • Power Supply 12-24Vdc; 5V with Bare Wire Lead (19161)
