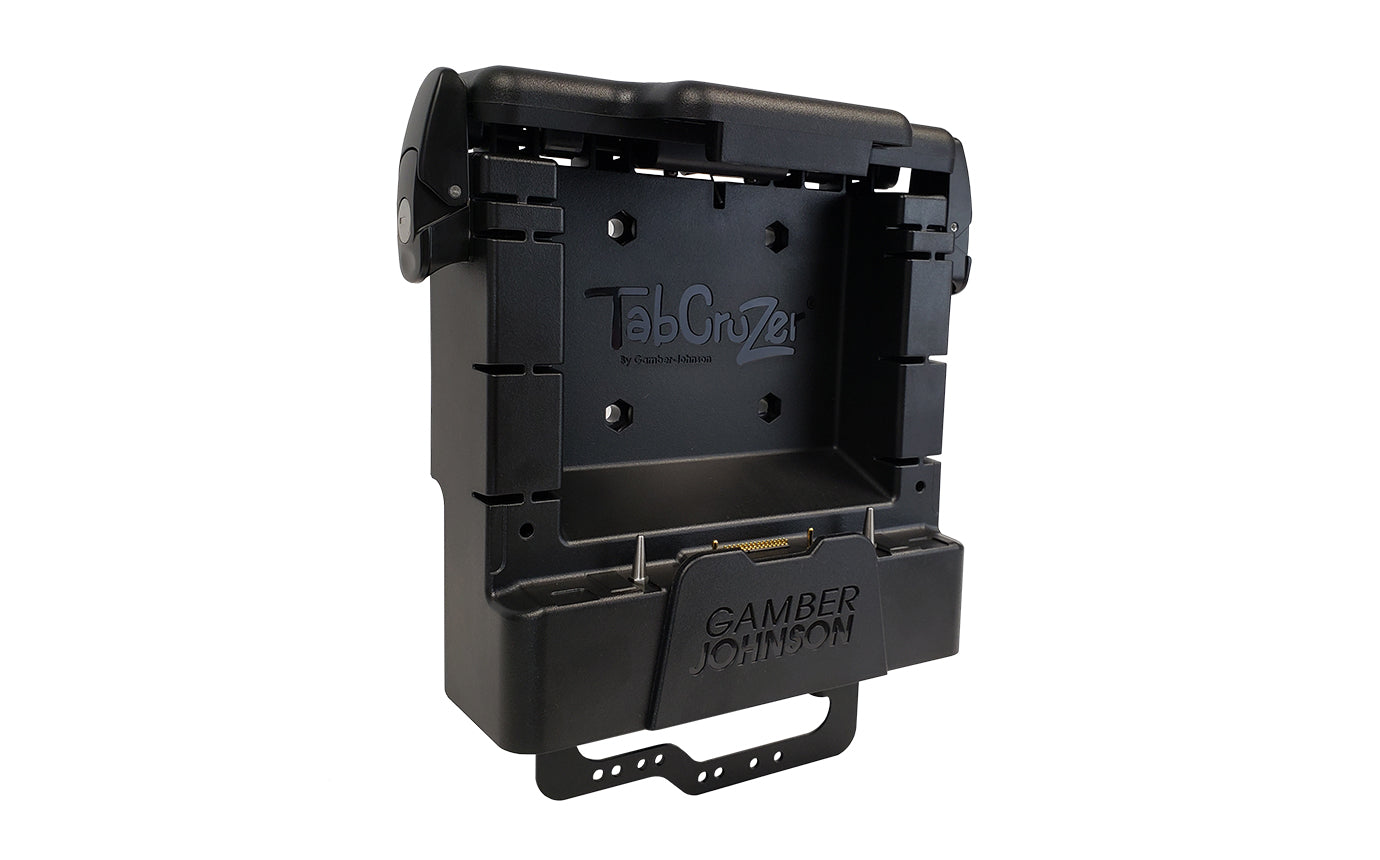

The Zebra ET50/51 55/56 10 inch docking station features draw latches to ensure the tablet is kept in place. Guide pins on the front make it easy to put the tablet into the docking station correctly and ensures there is full connectivity. The tablet’s scanner; hand strap; battery bay; and stylus all work with the docking station. This dock features a powered RS232 port to connect hand-held or mobile computers; scales; scanner guns; or printers. Additional ports include Ethernet; USB 3.0; and power input.

• Weight

  2.6 lbs / 1.18 kg

• Height

  10.0 in / 25.4 cm

• Width

  10.0 in / 25.4 cm

• Depth

  3.35 in / 8.5 cm

Features:

• Port replication Designed and tested for MIL-STD 810G specifications
• Compatible with Zebra enterprise tablets with the rugged frame option
• Accommodates the expansion back of the ET50/51 55/56 to easily add accessories like a scanner/ hand strap and optional battery bay or hand strap and optional battery bay
• Front camera on ET5X accessible when the tablet is in the docking station
• Compatible with either Windows or Android operating systems
• Dual latch/locks provide added stability and docking connectivity
• Guide pins prevent damage to the docking connector when docking the tablet
• VESA 75mm mounting pattern
• Steel and Composite design for reduced overall weight
• Rugged construction for long-term durability
