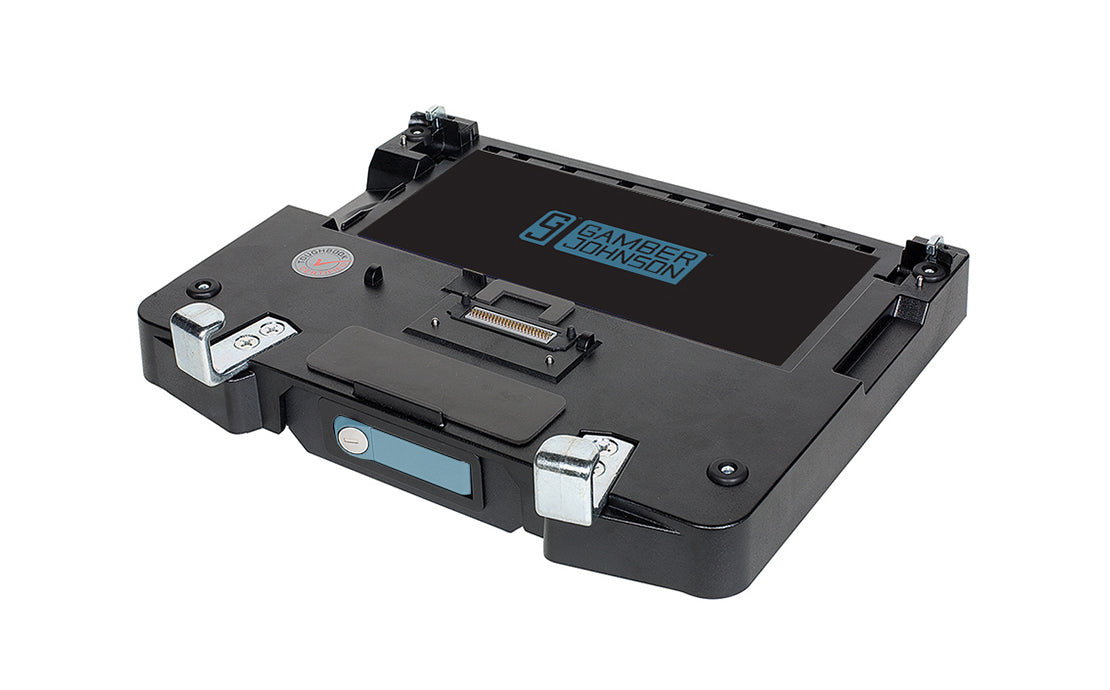

This docking station is compatible with the TOUGHBOOK 54 and 55 laptop computer and accommodates the optional modular expansion area on the TOUGHBOOK 54 and 55. This docking station features full port replication including Ethernet, Serial, HDMI, VGA, and powered USB.

• Weight

  5.50 lbs. / 2.5 kg

• Height

  3.50" / 8.9 cm

• Width

  13.48" / 34.2 cm

• Depth

  11.85" / 30.1 cm

Features:

• Designed to MIL-STD 810G test procedures and complies with FCC Class A standards
• Small footprint - designed to maximize available space inside of vehicle
• Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as TOUGHBOOK Certified
• Rear-facing l/O ports, integrated cable strain relief system, and convenient cable management system Spring-loaded docking connector to ensure connectivity in the roughest terrain
• Front safety bracket and rear corners ensure proper alignment and docking connectivity
• Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked.
• This docking station accommodates the optional modular expansion area on the TOUGHBOOK 54/55 computer
• Special access area for smart card reader makes it easy to insert and eject card
• Push button latch with keyed lock for theft deterrence:

                 -Push the latch to release the docking connector

                 -Insert computer and push latch closed to dock computer

• Can be used with Motion Attachments with the VESA 75mm hole pattern only
• Rugged composite/steel construction with black powder coat finish for long-term durability
• Antenna switch position:

                -Switch set toward outside of dock: Uses exterior antenna

                -Switch set to inside of the dock: Uses laptop antenna
