FEATURES

Approvals:

• IP67 Certified

MPSW9 Single-Color

• SAE J595 Class 1 (Amber, Blue, Red, and White)
• SAE J845 Class 1 (Amber, Blue, Red, and White)
• NFPA 1901 (Blue, Red, and White)
• CCR Title 13

MPSW9 Tri-Color

• SAE J595 Class 1 (Amber, Blue, Red, and White)
• SAE J845 Class 1 (Amber, Blue, Red, and White)
• NFPA 1901 (Amber, Blue, Red, and White)

A Curved Shape and Powerful LEDs Provide an Impressive Off-Axis Light Spread

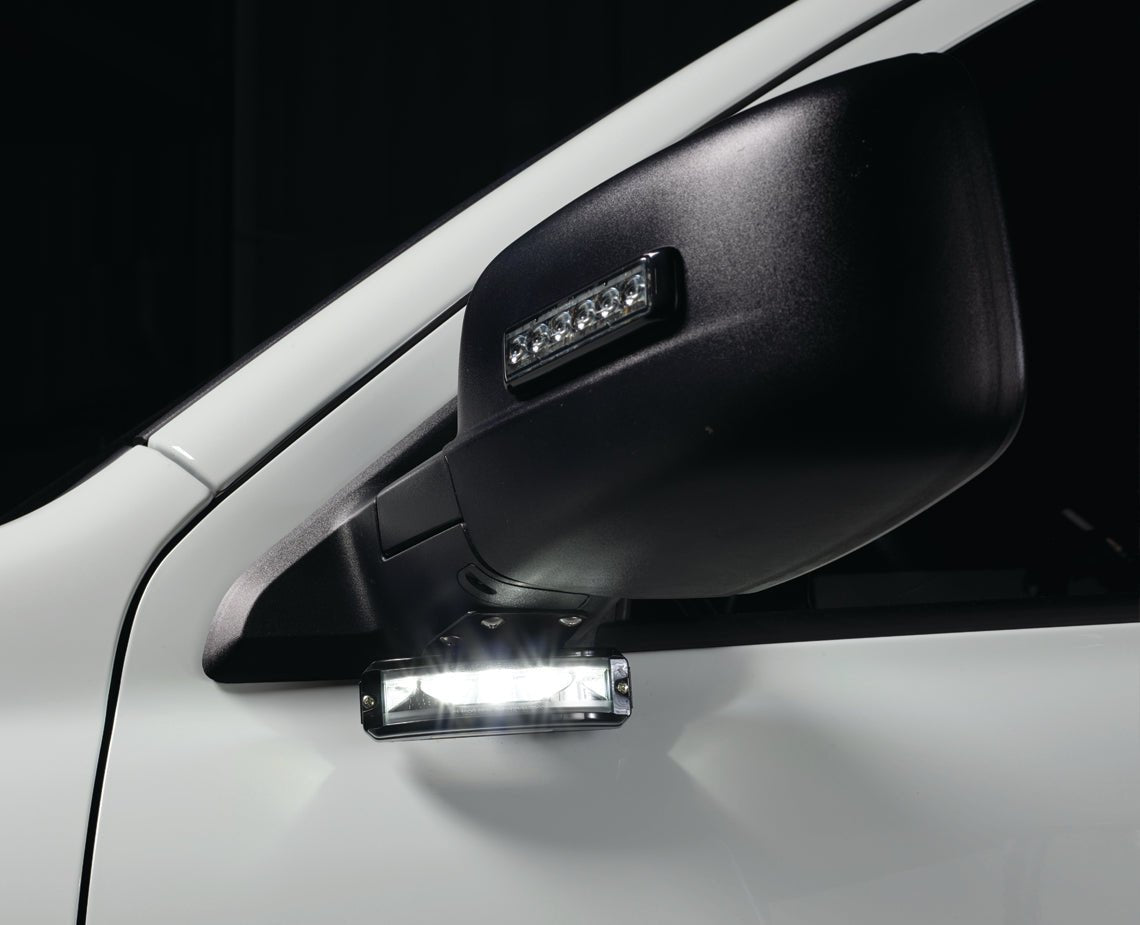

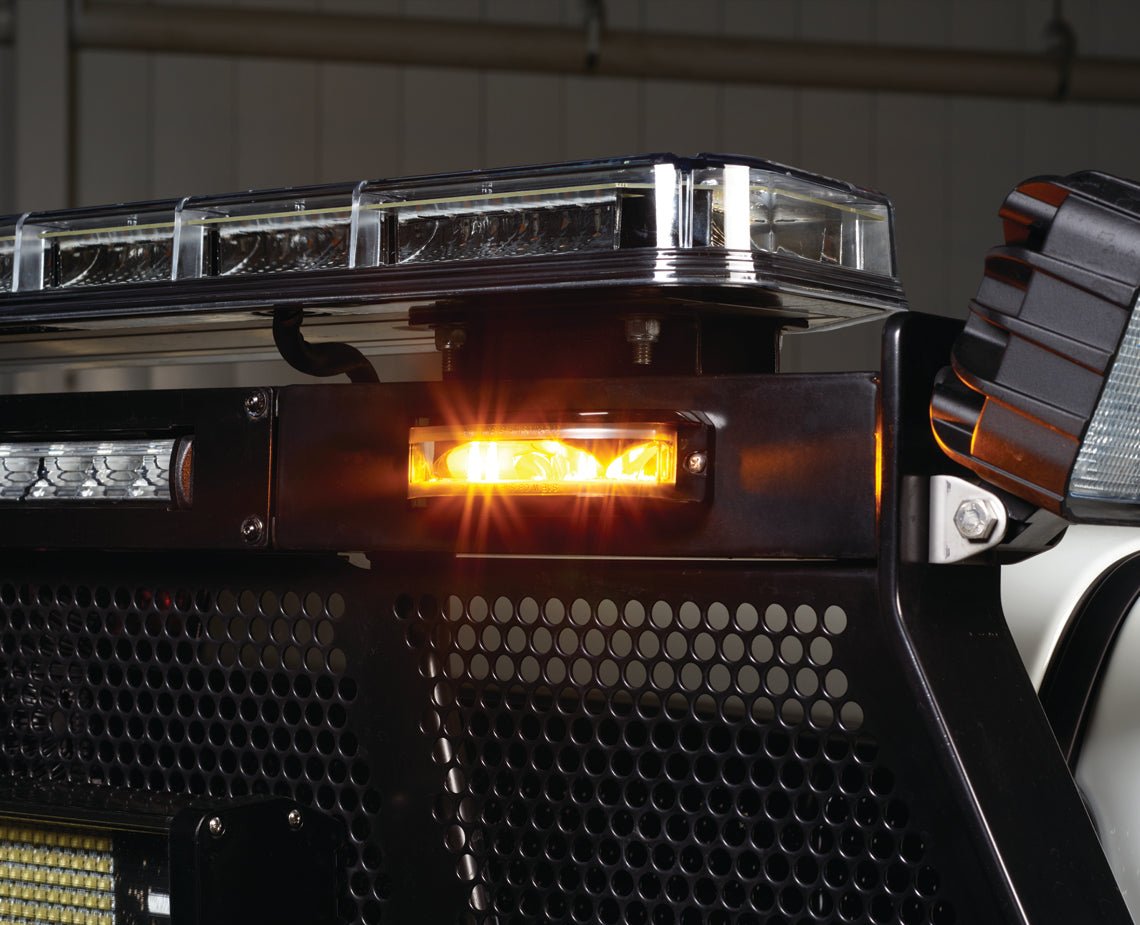

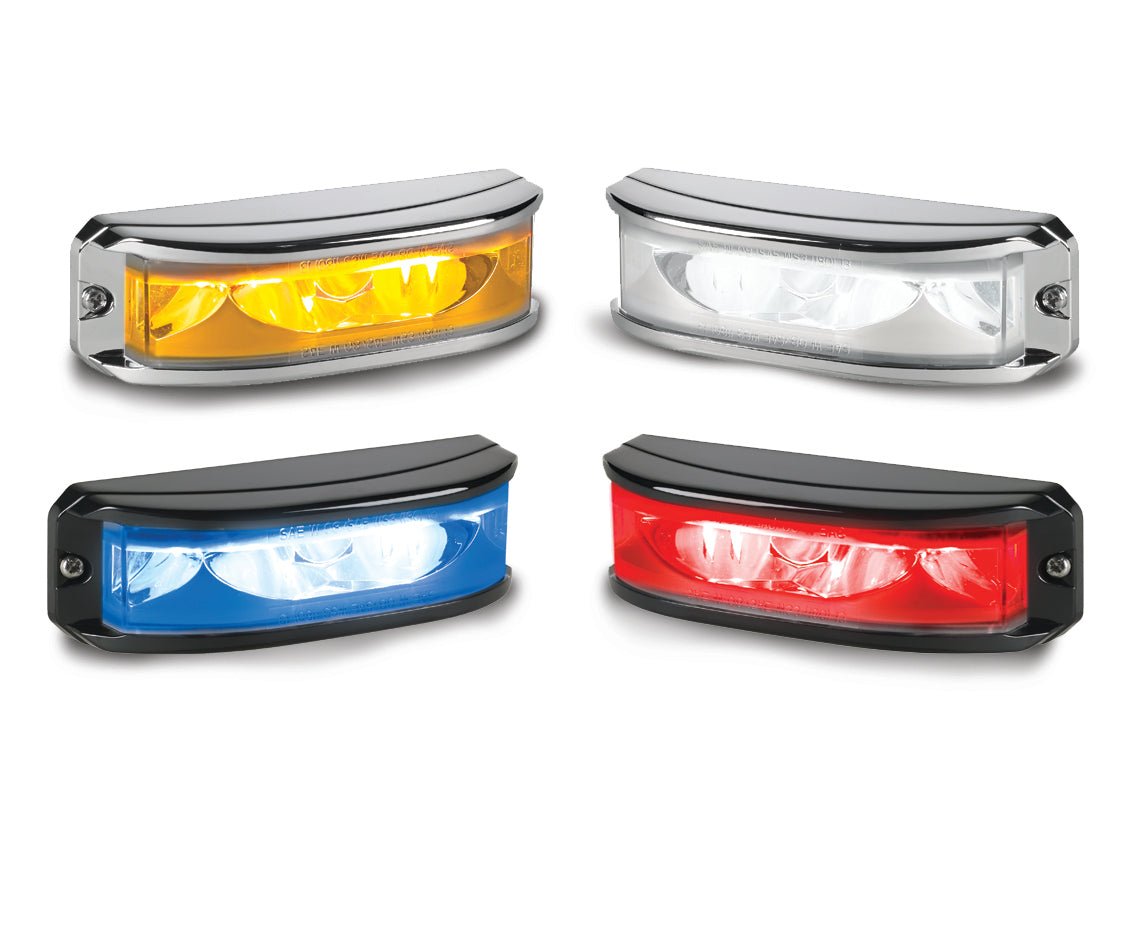

MicroPulse® Wide Angle 9’s curved design and powerful LEDs provide an impressive 180-degree light spread. These perimeter lights are ideal for mounting on push bumpers, rub rails, side mirrors, and spoilers of first responder and work truck vehicles. MicroPulse Wide Angle 9 models are available in Amber, Blue, Red, Green, and White and in single-, or tri-color combinations. MicroPulse Wide Angle 9 tri-color models can operate as a single-, dual-, or tri-color light.

Highly Effective Warning Light
MicroPulse Wide Angle 9 lights can be programmed to operate as a single unit or synchronize with multiple light heads. Built-in flash patterns enable multiple vehicle perimeter lights to be either synchronized in the same pattern or in opposite sequence. The Red/Blue/White MicroPulse Wide Angle 9 tri-color model is also available with a smoked lens. The dark tinted polycarbonate lens makes this model the optimal choice for undercover applications.

Built to Last

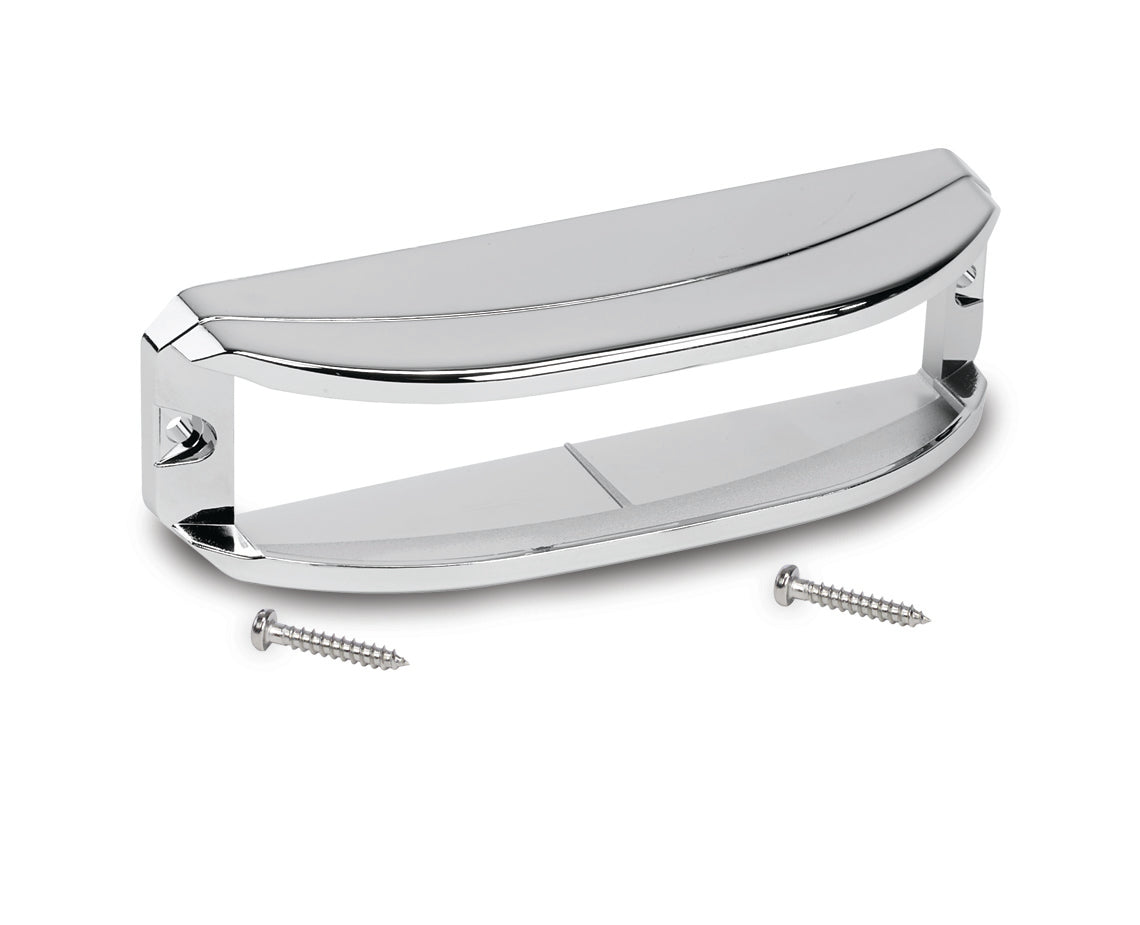

The MicroPulse Wide Angle 9 Clear lens is made of UV-resistant polycarbonate to protect against harsh conditions. Models come standard with a Black bezel and are also available with an optional Chrome or White bezel.

FSJoin™ Compatible
MicroPulse Wide Angle 9 models are FSJoin™ compatible. FSJoin is a programming compatibility feature of Federal Signal’s light bars and exterior/ interior warning lights that work in conjunction with a Convergence Network siren or controller. When using FSJoin products, the Convergence Network siren/light controller controls all of the vehicle’s warning light flash patterns, dimming feature, and light head syncing/alternating patterns.
