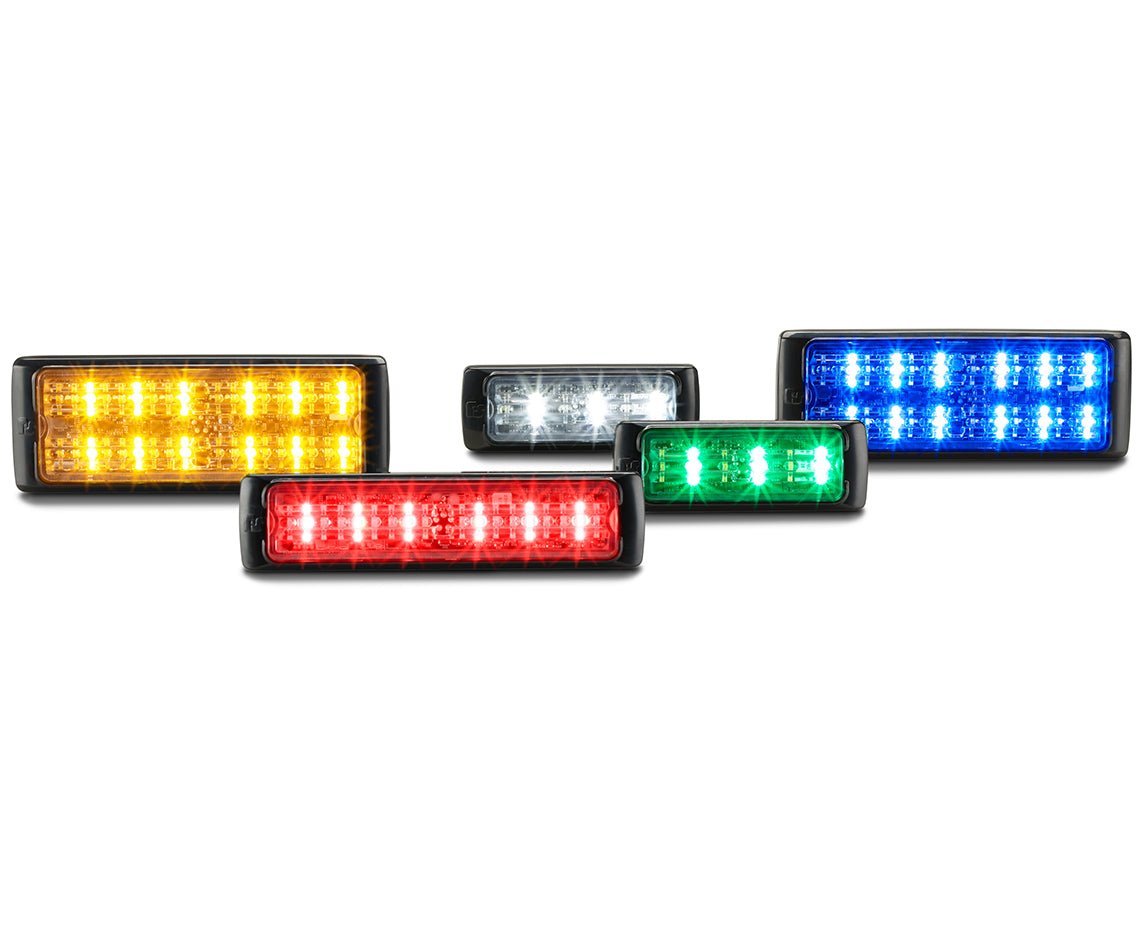

Police/Fire MicroPulse® Ultra

• The MicroPulse® Ultra is an ultra low-profile perimeter warning light designed to be discreet yet highly effective, available in three different sizes to fit various applications.
• Choose from single-, dual-, and tri-color models, allowing for flexibility in color combinations such as Amber, Blue, Green, Red, and White.
• Features a selection of (25) distinct flash patterns, ensuring you can tailor the light's operation to your specific signaling needs.
• Multi-voltage capability makes it compatible with both 12 and 24 Vdc systems, enhancing versatility across different vehicles.
• This innovative product supports a wide range of external and internal mounting applications, providing extensive options for installation.
• The standard model includes a sleek black bezel, with optional Chrome or White bezels available for customization to fit your vehicle aesthetics.
• Comes with a robust five-year warranty, backed by Federal Signal to provide peace of mind regarding product reliability and durability.

FEATURES

Approvals:

• Meets SAE J595 Class 1 standards for Amber, Blue, Red, and White lighting.
• Conforms to SAE J845, Class 1 requirements for multiple color configurations including Amber, Blue, Red, and White*.

NFPA 1901** compliance ensures suitability for emergency services.

• Adheres to CCR Title 13** for California’s regulations regarding warning lights.
• Constructed to meet GSA KKK-A-1822** specifications that govern federal vehicle equipment.
• Complies with R65 regulations, ensuring high visibility for improved safety.
• IP67 rating guarantees resistance to dust and water, making it ideal for harsh environments.

* SAE J845 for smoked lens models are classified as Class 2 (Blue, Red, and White)
** Flash patterns meeting these specifications are detailed in the instruction manual

Highly Effective, Ultra Slim Warning Light
The MicroPulse® Ultra features a streamlined design allowing for an array of mounting options suitable for both exterior and interior applications. Equipped with an advanced high-output LED light head, it can be programmed to function either independently or synchronized with additional light heads. This versatility enables multiple vehicles equipped with MicroPulse® Ultra perimeter lights to operate in the same flash pattern or alternating sequences, enhancing visibility and communication on the road.

Built to Stand Up to the Most Punishing Conditions
The lens of the MicroPulse® Ultra is crafted from UV-resistant polycarbonate, offering robust protection against the elements. Each model incorporates a fully encapsulated waterproof housing, which effectively guards against moisture and condensation, ensuring long-lasting performance even in challenging weather conditions. With all MicroPulse Ultra perimeter lights backed by Federal Signal’s five-year warranty, users can trust in the quality and durability of their investment.

A Versatile Solution for any Warning Light Application
MicroPulse® Ultra comes in a variety of color combinations, including single, dual, and tri-color configurations featuring Amber, Blue, Green, Red, and White. Standard models are equipped with a Black bezel, while Chrome or White bezels can be purchased separately for those seeking a more personalized appearance. For added convenience, the MicroPulse Ultra lights are available with either a Clear lens or a Smoked lens, which provides a more subtle operational profile. Additionally, an adhesive mount kit (sold separately) facilitates the interior window mounting of a MicroPulse Ultra 6 light head in various orientations.

FSJoin™ Compatible
The MicroPulse Ultra models are integrated with FSJoin™ compatibility, a feature that allows synchronization with Federal Signal’s light bars and other interior/exterior warning lights when used within a Convergence Network siren or controller. This compatibility means that users can easily manage all warning light flash patterns, dimming settings, and light head synchronization using a single control system. The FS Convergence Network Configuration Software simplifies the programming process for multiple FSJoin products, making setup efficient and user-friendly.

FSLink™ Compatible
With FSLink technology built in, MicroPulse Ultra models possess a shared set of flash patterns that can be utilized across Federal Signal’s LED perimeter lights, interior lights, mini-light bars, and beacons. This shared software enables different products to be interconnected and configured in a common flash pattern, allowing for simultaneous or alternating flashing to maximize visibility and safety.

Wiring Diagram
FSLink products feature five programming wires, with consistent wire functions across all FSLink devices that simplify the programming process.

Programming Features

• Three selectable programming modes.
• Adjustable brightness settings featuring full, dim, and cruise options.
• FSLink functionality for synchronizing multiple products to flash either simultaneously or alternately.

• Flash color selection capabilities:



• MPS3U can function as a single- or dual-color light.
• MPS6U/MPS12U can operate as single-, dual-, or tri-color lights.
• Color order selection for customized warning signals.

• Split flash selection options:



• MPS3U = full flash.
• MPS6U = full flash and left/right flash patterns.
• MPS12U = full flash, left/right, top/down, and criss-cross patterns.
